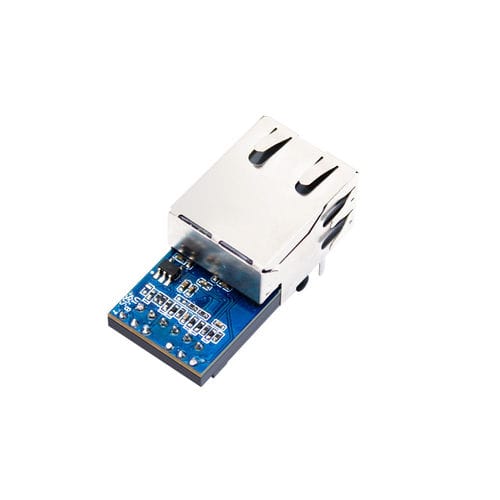

Protocol converter module USR-K7

signalEthernetserial

TTL UART to Ethernet module ● TTL UART to Ethernet module ● Supports TCP server/client, UDP server/client,https client, Virtual COM ● Supports Modbus RTU to Modbus TCP ● Supports flow control CTS/RTS, XON/XOFF ● Supports 10/100Base-T(X) self-adaptive Ethernet interface ● Configuration via Web Server page, AT commands, and Windows Utility Industrial Ethernet to UART Modules With IT scheme and Cortex-M4 processor, signal processing is more efficient and reliable.Equipped with optimized TCP/IPI protocol stack. Ethernet Module USR-K7 can quickly realizes bi-directional data transmission stable and reliable. The modules has been tested for a long time at - 40 - 85 C and 7* 24 hours stability pressure test. Data Submitted Directly to Web Server Supports the data interaction between the terminal device and the web server directly. Without considering the conversion process, the data request from the serial port to the https server can be realized quickly by simply setting parameters. Networked Monitoring of Medical Machinery USR-K7 can realize the data transmission between serial port and network quickly thus reducing the manpower on duty. At the same time,multiple medical devices can be combined into local network to realize real-time information.
