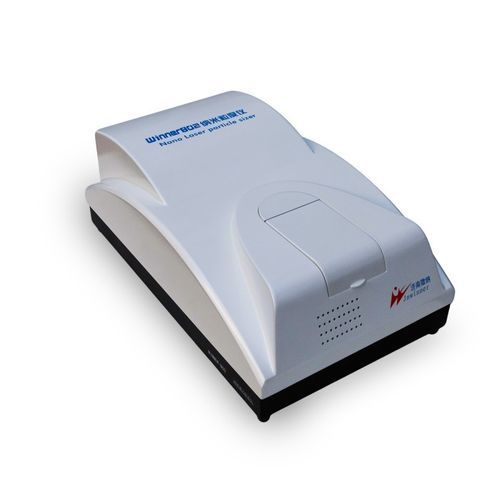

Dynamic light scattering particle size analyzer Winner802

laboratoryfor the pharmaceutical industryfor the cosmetics industry

Product Overview
Winner802 uses dynamic light scattering (DLS) with a digital correlator to derive the diffusion coefficient from scattered light fluctuations and calculate particle size distribution via the Stokes–Einstein equation. Intended for research laboratories, R&D centres and quality-control labs, the instrument supports coloured samples and provides reproducible particle size distribution outputs.

Key Features

• Photon-correlation DLS principle for particle sizing based on Brownian motion.
• CR256 digital correlator with correlator resolution up to 8 ns and data throughput up to 162M.
• HAMAMATSU photomultiplier detector for improved sensitivity and signal-to-noise ratio.
• Optical-fibre path design for stability and reduced interference.
• Semiconductor temperature control, range 5–90 °C, accuracy ±0.1 °C.
• Automated operation: SOP presets, one-click testing; bilingual interface (Chinese/English).

Applications

• Nano metal oxides and metallic powders
• Nano ceramic materials
• Proteins, polymer latexes and colloids
• Pharmaceutical formulations and development
• Oil/water emulsions
• Paints, coatings, pigments, inks and toners
• Cosmetics and topical formulations
• General nanomaterial research, formulation and quality control

Main Specifications — General

• Model: Winner802
• Sample cell: 10 × 10 × 40 mm (1–4 mL)
• Temperature control range: 5–90 °C; accuracy ±0.1 °C
• Operating mode: SOP presets, fully automated, one-click testing, Chinese/English interface
• Dimensions (W×D×H): 600 × 380 × 230 mm
• Net weight: 12 kg

Main Specifications — Measurement Size

• Measurement range: 0.3–10000 nm (sample dependent)
• Measurement concentration: 0.1–100 mg/mL (sample dependent)
• Accuracy (CRM D50): ≤1.0%
• Repeatability (CRM D50): ≤1.0%
• Test speed: <5 min
• Digital correlator: dynamic linearity 10^11; max 10,000 channels; delay time 100 ns–10 ms

Main Specifications — Optics

• Light source: 532 nm semiconductor laser, adjustable 1–40 mW
• Detector: Photomultiplier tube (HAMAMATSU)
• Scattering angle: 90°

Software Functions

• Batch and comparative statistics for multiple test runs (e.g., before/after processing or time series)
• Intelligent data processing to select representative results
• Custom outputs: D-values (D1–D100), cumulative percentages and range-based metrics
• Export formats: Word, Excel, image (.bmp), text (.txt) and PDF
• Optional GMP support; additional interface languages available on request

Advantages (summary)

• Combination of DLS and photon-correlation for robust autocorrelation analysis
• Nanosecond-level correlator resolution enabling detection of fast signal fluctuations
• Sensitive PMT detection for low-noise measurements
• Fast data acquisition and real-time autocorrelation computation
• Stable optical path using fibre technology
• Precise temperature control to reduce viscosity/temperature-related measurement error
• Comprehensive reporting with customizable particle size metrics

Technical Specifications

• Measurement range: 0.3–10000 nm
• Concentration range: 0.1–100 mg/mL
• Correlator resolution: up to 8 ns; delay time 100 ns–10 ms; max 10,000 channels
• Laser: 532 nm, 1–40 mW
• Detector: PMT (HAMAMATSU)
• Sample volume: 1–4 mL
• Temperature control: 5–90 °C, ±0.1 °C
• Dimensions: 600 × 380 × 230 mm; Weight: 12 kg
