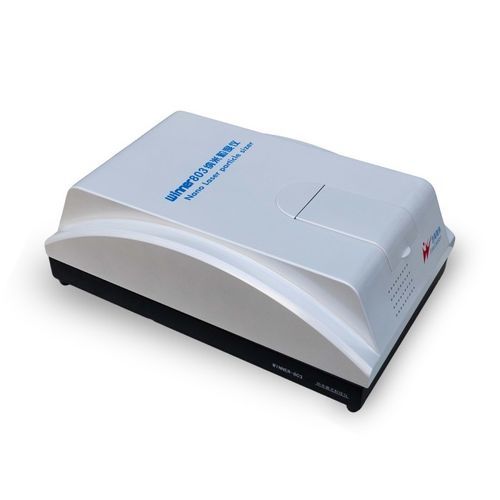

Laser light scattering nanoparticle size analyzer Winner803

laserdynamic light scatteringfor research

Overview
Winner803 uses dynamic light scattering (DLS) and photon correlation spectroscopy to determine nanoparticle size distribution. Based on Brownian motion, the instrument records scattered light fluctuations at a fixed angle, derives diffusion coefficients and calculates particle diameters via the Stokes–Einstein equation. Designed for research institutes, university laboratories, R&D centers and quality control laboratories.

Key Highlights / Advantages

• Dual-wavelength laser with automatic switching for samples with absorbance characteristics.
• DLS and photon correlation processing to extract particle size from photon fluctuation signals.
• High temporal resolution via CR256 digital correlator (resolution down to 8 ns).
• High sensitivity with HAMAMATSU photomultiplier tube (PMT) detector for improved signal-to-noise ratio.
• Fast data acquisition and processing (data throughput up to 162M) using a proprietary CR256 correlator.
• Stable optical path with fibre coupling for enhanced anti-interference performance.
• Precise temperature control using semiconductor regulation (accuracy ±0.1°C).
• Exportable, customizable test reports with standard particle size metrics and distributions.

Main Specifications — General
Model: Winner803
Sample cell volume: 10×10×40 mm (1–4 ml)
Temperature control range: 5–90 °C; accuracy: ±0.1 °C
Operating modes: SOP settings, fully automated testing, one-click automatic test; bilingual interface (Chinese/English)
Outer dimensions: 600×380×230 mm
Net weight: 12 kg

Main Specifications — Measurement Size
Measurement range: 0.3–10000 nm (sample-dependent)
Measurement concentration: 0.1–100 mg/ml (sample-dependent)
Accuracy (CRM D50): ≤1.0%
Repeatability (CRM D50): ≤1.0%
Test speed: <5 minutes
Digital correlator: up to 10,000 channels; dynamic linearity 10^11; delay time 100 ns–10 ms

Main Specifications — Optics
Light source: Primary semiconductor laser λ=635 nm, P=1–40 mW (adjustable); auxiliary blue laser λ=405 nm, P>2 mW
Detector: Photomultiplier tube (PMT, HAMAMATSU)
Scattering angle: 90°

Software Functions

• Statistical comparison across multiple tests for batch, process or time-based analysis.
• Intelligent data processing to identify representative results.
• Custom analyses: any percentile D1–D100, cumulative percentages above/below a size, range cumulative percentages.
• Outputs: typical particle size values, differential and cumulative distributions, histograms and curves.
• Report export: Word, Excel, BMP, TXT, PDF formats.
• Interface languages: Chinese and English (additional languages available on request).

Application

• Nanometal oxides and nano metal powders
• Nano-ceramic materials
• Proteins and polymer latex
• Pharmaceutical formulations
• Water/oil emulsions
• Paints, coatings, pigments, inks and toners
• Cosmetics
• R&D and production of nanomaterials across industries

Patent Technology

• Optical bench design — Patent No. ZL 2014 2 0378380.8
• 3D optical bench alignment — Patent No. ZL 2013 2 0835882.4
• Application of MIE scattering principle — Patent No. ZL 2013 2 0812021.4
• Sealed sample cuvette for dry particle analysis — Patent No. ZL.2011 2 0267646.8
• Dual laser beam orthogonal application — Patent No. ZL 2007 2 0025702.0
• Powder dispersion pump design — Patent No. ZL 2007 2 0018648.7
• Wet circulation installation — Patent No. ZL2010 2 0593526.2

Test Report and Output
The system generates typical particle size metrics, differential (interval) and cumulative distributions, graphs (histograms or curves) and exportable reports in Word, Excel, BMP, TXT and PDF. Supports statistical comparisons and custom analyses (D1–D100 and derived surface metrics).

Technical specifications

• Model: Winner803
• Measurement range: 0.3–10000 nm (sample-dependent)
• Measurement concentration: 0.1–100 mg/ml (sample-dependent)
• Sample cell volume: 10×10×40 mm (1–4 ml)
• Temperature control: 5–90 °C; accuracy ±0.1 °C
• Operating mode: SOP, fully automated, one-click testing, bilingual interface
• Outer dimensions: 600×380×230 mm; net weight: 12 kg
• Light source: 635 nm semiconductor laser (1–40 mW adjustable); auxiliary 405 nm blue laser >2 mW
• Detector: Photomultiplier tube (HAMAMATSU)
• Scattering angle: 90°
• Digital correlator: up to 10,000 channels, dynamic linearity 10^11; delay time 100 ns–10 ms; correlator resolution up to 8 ns
• Test speed: <5 minutes
