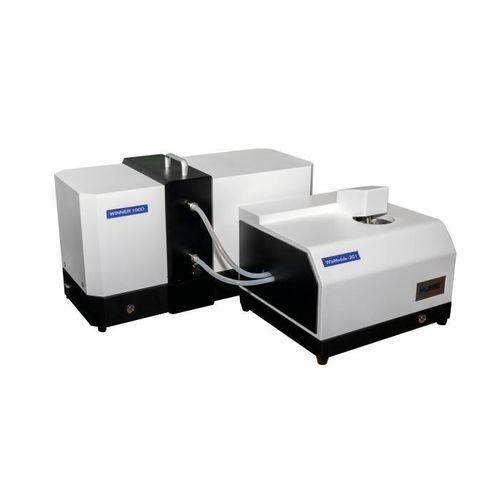

Ultrasound particle size analyzer Winner100D

dynamic image analysisdigital image processingoptical

Overview
Winner100D is a dynamic wet particle image analyzer designed for quantitative particle size distribution and morphology analysis in suspensions. It complies with ISO/DIS 13322-2 and captures, stores and processes real-time particle images over a wide range to deliver representative, reproducible results through large sampling volume and statistical acquisition.

Key statements

• Measurement range: 5–3000 μm (customizable)
• Suitable for research institutes, university laboratories, R&D centres and quality testing facilities
• Automatic wet dispersion with dual‑ultrasonic synergistic dispersion (integrated circulation + external ultrasonic) for improved deagglomeration

Main specifications
Model: Winner100D
Standard: ISO/DIS 13322-2
Outer dimensions: Main unit 700×300×450 mm; Wet module 415×350×380 mm
Net weight: Main unit 15 kg; Wet module 15 kg

Measurement size
Range: 5–3000 μm (customizable)
Accuracy (D50): ≤1.0% (national standard sample)
Repeatability (D50): ≤1.0% (national standard sample)
Feeding: Automatic wet dispersion system
Dispersion method: Integrated circulation in sample tank combined with internal and external ultrasonic at the observation window (dual‑ultrasonic synergistic system)
Particles analyzed: >100,000 pcs/min
Imaging speed: up to 120 frames/s

Optics
Lens: HD telecentric lens (optional specifications available)
Illumination: Highlight parallel light source for high clarity imaging

Output / analysis parameters

• Particle size distribution, D10/D50/D90/Dmax, typical and customizable intervals
• Particle morphology: aspect ratio, circularity, roundness and image gallery
• Particle count and concentration metrics

Advantages

• Comprehensive morphology analysis including sphericity, circularity, roundness and aspect ratio with dedicated roundness module
• Dynamic acquisition captures large particle populations for improved statistical representativeness versus static imaging
• Enhanced image clarity via wide field telecentric optics and constrained plane sampling window

Applications
Applicable to non‑metallic minerals, ceramics, coatings, inks, pigments, fillers, pharmaceuticals, food, lithium battery materials, abrasives, metal powders, cement, chemical powders, water treatment, geological exploration, and academic research. Supports routine QC and advanced R&D for particles in suspension.

Analysis software functions

• Task management for organized data handling
• Video acquisition and image capture for traceable records
• Scale calibration to correlate image pixels to physical dimensions
• Batch image processing during acquisition to handle large datasets
• 12 automatic particle processing tools (deagglomeration, noise removal, boundary completion, hole filling, edge smoothing, etc.)
• Customizable outputs: particle size (distribution, D10/D50/D90/Dmax, custom intervals), shape parameters, particle images and counts
• Additional features: custom header/logo, operator display, size/shape filters, dual‑lens auto switching, motorized focus, real‑time concentration detection, circulation control and image saving

Technical specifications

• Model: Winner100D
• Standard: ISO/DIS 13322-2
• Measurement range: 5–3000 μm (customizable)
• Accuracy (D50): ≤1.0%
• Repeatability (D50): ≤1.0%
• Feeding: Automatic wet dispersion system
• Dispersion: Integrated circulation + ultrasonic (dual‑ultrasonic synergistic)
• Analysis speed: >100,000 pcs/min
• Imaging frame rate: up to 120 frames/s
• Lens: HD telecentric (optional)
• Lighting: Highlight parallel light source
• Dimensions: Main unit 700×300×450 mm; Wet module 415×350×380 mm
• Net weight: Main unit 15 kg; Wet module 15 kg
