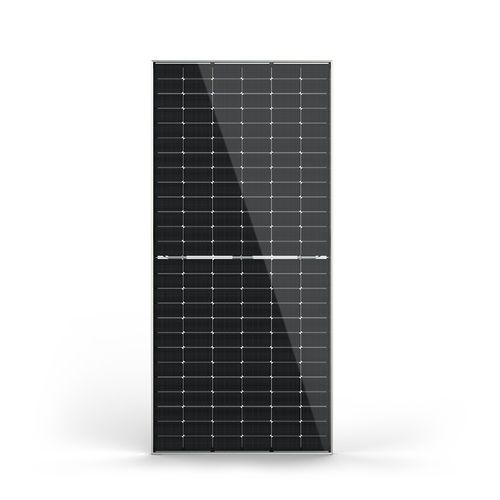

Monocrystalline silicon solar module Tiger Neo 78HC
CETUVIEC

Add to favorites

Compare this product

Go to the Jinko Solar website for more information

Characteristics

Material: monocrystalline silicon
Certifications: CE, TUV, IEC
Other characteristics: black, high-performance
Peak power (Wp): 610 W, 615 W, 620 W, 625 W, 630 W
Open-circuit voltage: 55.3 V, 55.4 V, 55.6 V, 55.7 V, 55.9 V
Short circuit current: 4.3 A, 14.1 A, 14.2 A, 14.3 A, 14.4 A
Max power voltage: 45.6 V, 45.7 V, 45.8 V, 45.9 V, 46 V
Max power current: 13.4 A, 13.5 A, 13.6 A, 13.7 A
Module efficiency: 21.82 %, 22 %, 22.18 %, 22.36 %, 22.54 %
Lenght: 2,465 mm
(97 in)
Width: 1,134 mm
(45 in)
Height: 35 mm
(1 in)
Weight: 30.6 kg
(67.46 lb)

Description

TOPCon Technology Innovation Selective Passivation Contact The key technology determines the maximum efficiency - Ultra-high Power Generation/Ultra-high Efficiency - Higher Bifacial Gain - Enhanced Reliability - Lower LID / LETID - High Compatibility - Optimized Temperature Coefficient - Lower Operating Temperature - Optimized Degradation - Outstanding Low Light Performance - Exceptional PID Resistance 30 Power Warranty ≤ 1% First year degradation -0.4% Linear degradation Optimized Temperature Coefficient -0.30%/℃ The temperature coefficient of P-type is -0.35%/℃， Under high temperature condition, Tiger Neo can generate 2% more power than P-type
