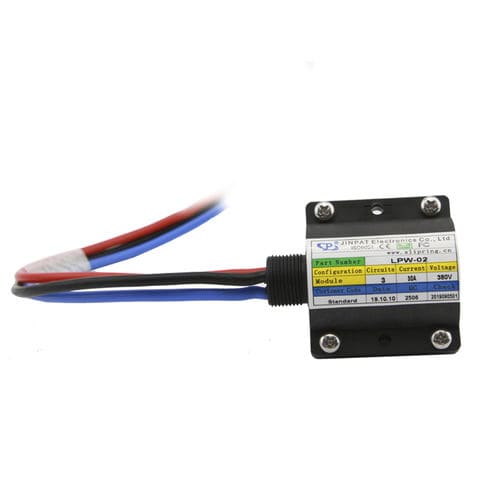

Electric slip ring LPW-02

for wind generatorsanalog

Circuits 3 circuits Electronic & Electrical 3@30A 380VAC/DC Mechanic 0-100rpm Environment -35°C~ +80°C IP43 Life >20 million turns Description This unit can be used in any electromechanical System that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify System design, eliminate possible damage while rotation. This is constantly being extended in order to meet the developments in signal and data Transmission. JINPAT has developed a com-prehensile standard programmed that is able to offer optimum solutions. The standard programmed enables the création of slip ring bodies of any number of pôles up to 100 for power and data/signal currents. Slip ring bodies can be supplied either as open slip ring bodies to be built per customers ‘requirements or in a housing of impact-résistant plastic or sheet métal. Features ♦ - 3 circuits models ♦ - Electrical data ♦ - Compatible with data bus protocols ♦ - Sealed units are also available ♦ - Control and data transmission ♦ - Wiring and max. number of pôles ♦ - More technical details ♦ - Volume of delivery ♦ - Flexible, color-coded, silver-plated, insulated lead wires ♦ Précision bail bearings meet or exceed life requirements for most commercial application. Advantage ♦ - Digital signais up to max. 500 kB ♦ - Amperages up to 30 A and volt- âge up to 380VAC ♦ - Diameters > 10 m high rotation speed ♦ Extrême operating conditions Option ♦ - Reinforced bearing ♦ - Tube and rotary transmission ♦ - Heating ♦ - Vent plug
