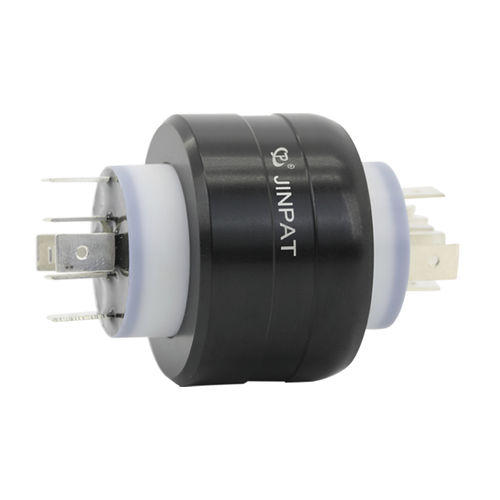

Electric slip ring A6Hfor roboticshigh-currentmercury
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Applications
- for robotics
- Other characteristics
- high-current, mercury, high-speed
- Primary current
Max.: 30 A
Min.: 1 A
- Rotational speed
Max.: 1,200 rpm
(7,540 rad.min-1)Min.: 1 rpm
(6 rad.min-1)
Description
Part Number: A6H
6 poles;
Current Rating: 30A@6 circuits, 4A@2 circuits; Voltage Rating: 250VAC/DC or higher;
Dielectric Strength: ≥500V@200Hz between each circuit;
Insulation Resistance:>25MΩ; Electrical Noise:≤30mΩ;
Operating Speed,0-100rpm;
Working Temperature,-30℃~ +60℃;
