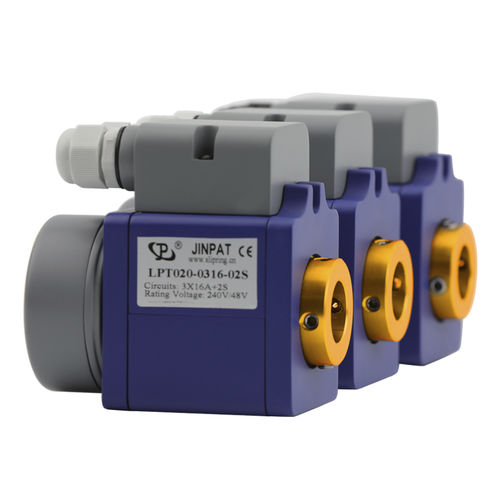

Through-bore slip ring LPT020-0316-02Splastic
Add to favorites
Compare this product
Characteristics
- Construction
- through-bore
- Material
- plastic
- Voltage
Min.: 48 V
Max.: 240 V
- Primary current
Min.: 1 A
Max.: 16 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 500 rpm
(3,142 rad.min-1)- Number of channels
Min.: 1 unit
Max.: 5 unit
Description
Part Number: LPT020-0316-02S
Circuit：3*16A+2*Signal; Working Voltage：240/48V DC/AC
Dielectric Strength：≥1000V@50Hz (P), 500V@50Hz (S)
Insulation Resistance：1000MΩ@500VDC (P), 500MΩ@300VDC (S)
Working Speed：0~500 rpm; Inner Diameter：≤Ф25mm;
Contact：Copper/Silver Graphite; Housing：Engineering Housing;
Torque：<0.15N.m; Wire Connection：Terminal/Stud
Working Temperature：-20°C~+80°C; Working Humidity：90%RH
IP64
Life：200 million turns
