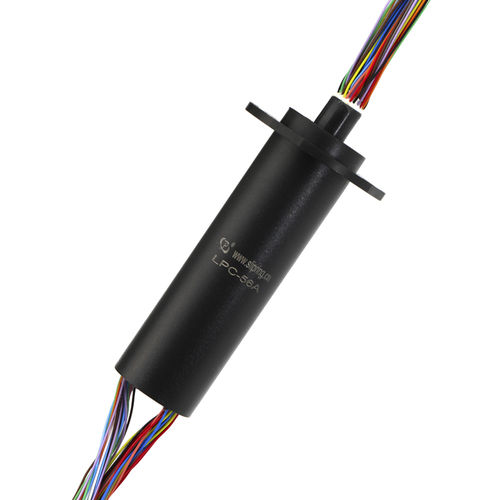

Capsule slip ring LPC-56A

for rotary tablesfor wrapping machinesmedical

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. LPC-56A is a standard, off-the-shelf miniture slip ring, the LPC-56A provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6,12,18, 24, 36, 56 circuit models, slip ring LPC-56A with 85.7mm length, 56 circuits, max speed 300rpm, long working life, this series of product surely helps the development of some miniture high level technology products, such as medical equipments, precise instruments and mini drones etc. Features ♦ 56 circuits models ♦ 2 amps per circuit ,240VAC/DC ♦ Speed up to 300 rpm continuous ♦ Gold-Gold contacts ♦ Compatible with data bus protocols ♦ Sealed units are available ♦ Flexible, color-coded, silver-plated. Teflon® UL lead wires ♦ Transfers analog and digital signals ♦ Also available with 5 and 10 amps power rings combined with 2 amps rings. ♦ Precision ball bearings meet or exceed life requirements for most commercial applications Advantage ♦ Low torque minimize system torque budget ♦ Compact design to fit in the most demanding space. ♦ Smooth running ♦ Low electrical noise ♦ Quick shipment per your urgent requirement ♦ 360°continuous rotation ♦ High bandwidth transfer capability ♦ Addition of special components ♦ Rapid delivery
