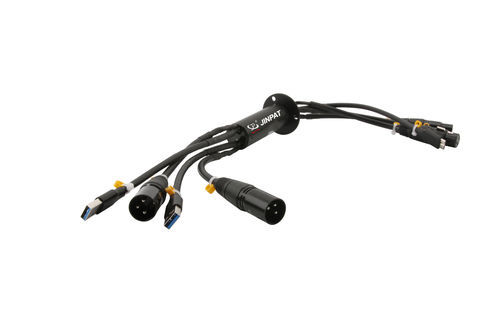

Video transmission slip ring

EthernetHD-SDIUSB

Features: ◎ Supports Multiple HD Formats: Compatible with HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI, HDMI, DVI, and DisplayPort. ◎ Low Signal Loss: Optimized for high-frequency signals with low insertion loss and return loss. ◎ High Signal Integrity: Maintains 75Ω impedance for distortion-free, interference-resistant transmission. ◎ Hybrid Signal Capability: Transmits video along with power, Ethernet, and control signals. ◎ Modular & Customizable: Flexible channel combinations with various connector options (BNC, SMA, etc.). ◎ Long Service Life: Supports millions of rotations for continuous, stable operation. ◎ Compact & Easy Integration: Designed for space-constrained systems like gimbals and robotic platforms. Video Signal Slip Rings JINPAT’s Video Signal Slip Rings are designed for the reliable transmission of high-definition video signals in rotating systems. These slip rings support a wide range of video interfaces, including HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI, HDMI, DVI, and DisplayPort, offering stable, interference-free image transmission in dynamic environments. Optimized with low insertion loss, excellent impedance matching (typically 75Ω), and low return loss, our video slip rings ensure the integrity of high-frequency video signals without distortion. A modular architecture allows integration with power, control, Ethernet, and other signal channels, all within a compact and rugged form factor. Available with various connectors such as BNC, SMA, SMB, and F-type, JINPAT’s solutions are easy to integrate and suitable for long-life continuous operation, with a lifespan of several million revolutions. These slip rings are ideal for broadcast gimbals, surveillance systems, UAV pods, radar EO turrets, and inspection robots. SDI Slip Rings JINPAT’s SDI Slip Rings support high-definition serial digital signals including HD-SDI, 3G-SDI, 6G-SDI, and up to 12G-SDI, ensuring ultra-low loss transmission with excellent signal integrity. Built for professional broadcast and video systems, they maintain robust performance even when combined with power, Ethernet, or control signals. Standard 75Ω impedance and BNC/SMA connectors ensure compatibility with industry requirements. HDMI Slip Rings Our HDMI Slip Rings provide a seamless transmission of uncompressed high-definition video and audio, supporting HDMI 1.4 and HDMI 2.0 standards with resolutions up to 4K and 60Hz. Designed for multimedia systems, medical equipment, and interactive displays, they offer low-crosstalk, high reliability, and flexible mounting options, with optional power and signal integration. DisplayPort Slip Rings JINPAT’s DisplayPort Slip Rings support high-bandwidth digital video transmission, capable of handling resolutions up to 8K depending on configuration. Ideal for industrial imaging systems, simulation equipment, and next-gen monitors, they maintain strong signal fidelity across rotary interfaces, and can be customized with various auxiliary channels such as USB, power, or Ethernet. Customization & Services Tailor your slip ring with specific signal types, channel counts, protection levels, or mounting styles. 3D CAD models and technical support are available upon request. Can’t find a suitable model? Contact us for 24/7 technical support . For detailed product specifications , refer to product datasheets or contact our sales team. Optimized for global markets – Precision-engineered for reliability in mission-critical applications.
