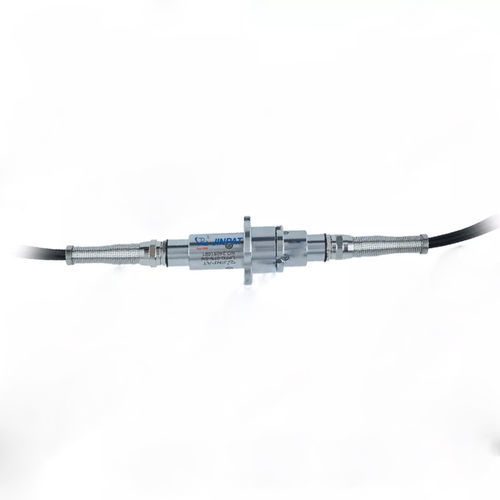

Fiber optic slip ring LPFO-03N-A

industrialIP65integrated

LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data. - Specifications - Fiber types: SM(9/125um), MM(50/125um or 62.6/125um) - Jacket types: 2.0mm/armor - Channel number: 3 - Connector types: FC/SC/ST/LC(PC or APC) - Wavelength range: SM:1310/1550nm, MM:850/1300nm - Estimated life cycle: ＞100 million revolutions - Insertion loss: ＜4dB - Vibration: MIL-STD-167-1A - Insertion loss ripple: ＜2dB - Mechanical shock: MIL-STD-810G - Return loss: SM:≥40dB, MM:≥25dB - IP rating: IP65 or IP67 - Crosstalk: ≥50dB - Max Optical power: 23dBm - Maximum speed: 300rpm - Package style: Pigtails on both ends - Working temperature: -20~+65℃(Industrial grade), -45～+75℃ (Military grade) - Weight, approx: 200g（No tail cable and connection included） - Storage temperature: -55~+85℃ - Number of Circuits: 3 - Lead Size: Φ26/Φ38*119 - Wavelength range: 850-1550 - Insertion loss: ＜4dB - Insertion loss ripple: ＜2dB - Return Loss: ＞40 - Optional: Single can be customized, housing material and driving connector are optional - Vibration: MIL-STD-167-1A - Mechanical shock: MIL-STD-810G - IP rating: IP65 or IP67 - Crosstalk: ≥50dB - Max Optical power: 23dBm - Maximum speed: 300rpm - Package style: Pigtails on both ends - Working temperature: -20~+65℃ (Industrial grade), -45～+75℃ (Military grade) - Weight, approx: 200g (No tail cable and connection included) - Storage temperature: -55~+85℃
