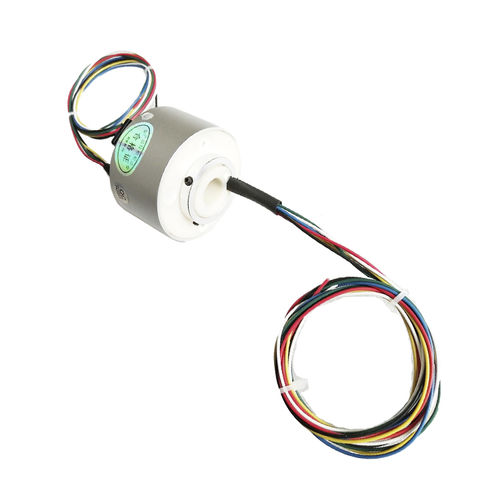

Ethernet slip ring DHK012-6-10AUSBthrough-borepancake type

Ethernet slip ring
Ethernet slip ring
Ethernet slip ring
Ethernet slip ring
Add to favorites
Compare this product
indicative price

Characteristics

Type
Ethernet, USB
Construction
through-bore, pancake type
Applications
robotic, for rotary tables, for packaging, for marine applications, for cable reels, for wrapping machines, for CCTV applications, industrial, for offshore applications, for telecommunication networks
Material
metal, plastic, graphite, metallic, fiberglass
Other characteristics
compact, IP54, with gold contacts, standard, high-current, IP65, with fiber optic rotary joint, multi-channel, custom, flange, low-torque, high-performance, analog, high-speed, rugged, large-diameter, miniature, digital
Rotational speed

Max.: 1,000 rpm (6,283 rad.min-1)

300 rpm (1,885 rad.min-1)

Min.: 0 rpm (0 rad.min-1)

Current

Max.: 3,000,000 mA

240,000 mA

Min.: 0.1 mA

Voltage

Max.: 50,000 V

220 V

Min.: 0 V

Number of channels

Max.: 300 unit

24 unit

Min.: 1 unit

Description

Slip ring is designed to use to transmit power, signal or data, pneumatically or hydraulically from a stationary to a rotating platform. It also can be defined to something that goes around an axle like a collar that has 2 ports on it, the inside port rotates independent of the outside one, so that it is possible to attach a motor or sensor on a rotating platform without the wire winding. Transmission media: Electric Power, analogue signals(RS485/232/422, thermocouple etc), digital data(SDI, USB2.0, Gigabit etc) Max. current 2000A Max. number of wires 300 Max. data rate 1000 Mbits/s Max. working speed 2000rpm compact size, stable electrical and signal performance, low friction and torque, thicker precious metal plate, longer life. Can be apply for automatic machines which require rotating transfer electric/signal/gas/liquid, solve wire winding problems. We can make customized slip ring to rotating transfer RS485/232/422, CANBUS, Profibus, CC-link, USB2.0, Gigabit Ethernet etc.
