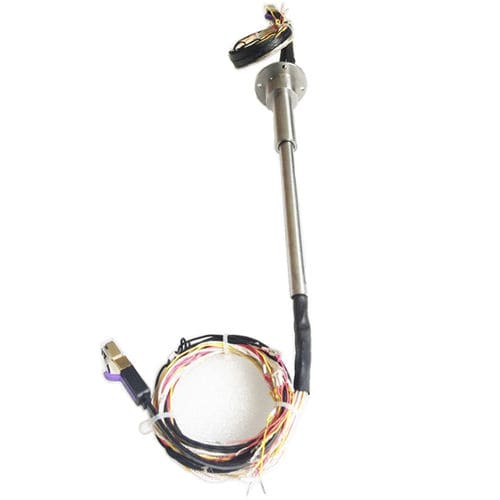

Rotary table slip ring DHS020-28
electro-opticalEthernetfiber optic

rotary table slip ring
rotary table slip ring
Add to favorites
Compare this product


Characteristics

Type
electro-optical, Ethernet, fiber optic, USB, HD-SDI
Applications
for rotary tables
Other characteristics
IP54, flange, high-speed, waterproof
Rotational speed

Max.: 1,500 rpm (9,425 rad.min-1)

Min.: 0 rpm (0 rad.min-1)

Number of channels

Max.: 306 unit

Min.: 1 unit

Description

Rotary table also named swival rable, it's a working platform of some equipment that can be revolved to any position while keeping in a fixed point. Mostly applied in serveillance and measure & control industry, the table requires a rotating electrical connector---slip ring to finish its operation. As an electrical part of 360 degree rotating transmission, INGIANT slip ring constitutes dozens of application cases for the rotary table. The slip ring can transmit current and signals, such as USB, SDI, Ethernet (100M, 1000M), sensor signal, angle signal, and optical signal etc. The rotary table slip ring has many circuits up to 306 circuits to meet rotary table of different specifications. Such a high performance is definitely suitable for index table where speed measure is required in a high speed. Also, its high rotating precision helps the two-axis or multi-axis universal sensor platform keep a precise position with high accuracy and smooth motion for different loads. Index table, rotary table for lithium electricity equipment or CNC polishing equipment has employed INGIANT slip rings. They are similar to their excellent performance while varying in their rotating speed and transmitted media. Features & Advantages Transmission current and signal, including USB, SDI, Ethernet (100MB, 1000MB), sensor signal, angle signal, and optical signal etc. High rotating precision Many circuits up to 306 circuits Resistance to vibration, shock, dust and water Wide working temperature range: -55C~+200C High protection level (up to IP68) Long service life (over 300 million turns) Cost-effective Rapid delivery
