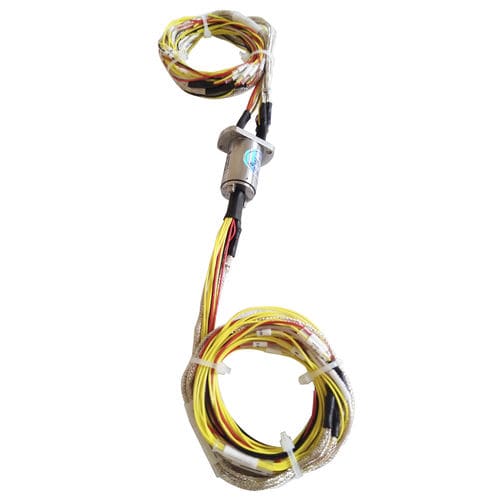

Electro-optical slip ring DHS016-6

electropneumaticEthernetUSB

Using the US military surface treatment process and super-hard gold plating treatment, it ensures extremely low resistance fluctuation and ultra-long working life. Mainly used to transmit weak control signals and weak currents in small and medium-sized systems. Such as video, control, sensing, power supply, Ethernet Ingiant DHS016 Series outer diameter 16mm ,it consists of 1-48 channels integral precision conductive slip ring ,supports signal and power mixed transmission, can customize the number of circuits and current voltage based on standard models Typical Applications Drones, stabilizers, smart homes, security monitoring, photography and videography, robots, testing instruments, turntables and automation equipment. etc. (1)Product type: DH—electric slip ring (2)Installation method: S—solid shaft slip ring (3)Outer diameter of solid shaft slip ring:016-16 mm (4)Total circuits: 6-6 circuits (5)The rated current or it will not be marked if it passes through a different rated current for the circuits. (6)Identify number: --XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHS016-6-1A-002 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHS016-6-1A-002; if there are more of this model in the future, and so on -003 , -004, etc.
