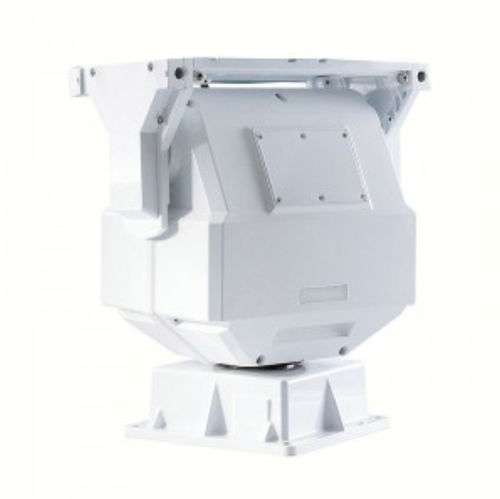

2-axis gimbal YJT-EFPTZDU3100-S

for sensorshigh-precisionhigh performance and load

Product Overview
The YJT-EFPTZDU3100-S is a high-performance, heavy-duty top-mount pan-tilt head designed for precision positioning in industrial surveillance, automation, and remote sensing applications. It supports top-mounted payloads up to 100kg and provides stable, smooth motion and reliable performance in demanding environments.

Product Features

• Load capacity ≤100kg; optional data feedback function available.
• Power-saving mode supported to reduce power consumption when the pan-tilt is stationary.
• Power-off memory function with repeat accuracy of ±0.1°.
• Acceleration/deceleration software design combined with structural design ensures smooth start and braking.
• Continuous 0°~360° horizontal rotation; vertical range -45°~45°; speeds up to 15°/s (horizontal) and 3°/s (vertical).
• High-strength die-cast aluminum alloy housing and high-strength bronze micro-backlash worm gear transmission enabling power-off self-locking.

Ideal For

• Industrial security and surveillance systems
• Large-scale camera platforms
• Remote sensing and measurement equipment
• Military and aerospace applications
• Harsh environment automation and monitoring

Specification
Model: YJT-EFPTZDU3100-S
Load Capacity: ≤100kg
Loading Method: Top Mount
Transmission Mode: Worm Gear Drive
Pan Range: 0°~360° Continuous Rotation
Tilt Range: -45°~45°
Pan Speed: 0.01~15°/s
Tilt Speed: 0.01~3°/s
Repeat Accuracy: ±0.1° relative to 0° origin
Presets: ≤200
Patrol Scan: Supported
Scan Mode: Patrol Scan
Communication Interface: RS485 (RS422 or RS232 optional)
Communication Protocol: Pelco_D
Baud Rate: 9600
Address Code: 1
Bottom Wiring: DC24V ×1, RS485 ×1, RJ45 ×1, Ground ×1; other cables customizable
Top Wiring: DC24V ×1, DC12V ×1, RS485 ×1, RJ45 ×1, Ground ×1; other cables customizable
Data Feedback: Supports query-based azimuth angle data feedback (real-time feedback / RS422 customizable)
Power Supply: DC24V ±10%; ≤115W
Operating Temperature: -35°C ~ +65°C
Operating Humidity: <90%RH
Lightning Protection: Device-level lightning protection supported
Ingress Protection: IP66 (standard); anti-salt fog treatment optional
Net Weight: ≈21kg
Dimensions: L×W×H: 340mm × 206mm × 390mm

Caractéristiques / Spécifications techniques

• Model: YJT-EFPTZDU3100-S
• Load Capacity: ≤100kg
• Loading Method: Top Mount
• Transmission Mode: Worm Gear Drive
• Pan Range: 0°~360° Continuous Rotation
• Tilt Range: -45°~45°
• Pan Speed: 0.01~15°/s
• Tilt Speed: 0.01~3°/s
• Repeat Accuracy: ±0.1°
• Presets: ≤200
• Patrol Scan: Supported
• Communication Interface: RS485 (RS422/RS232 optional)
• Communication Protocol: Pelco_D
• Baud Rate: 9600
• Power Supply: DC24V ±10%; ≤115W
• Operating Temperature: -35°C ~ +65°C
• Operating Humidity: <90%RH
• Ingress Protection: IP66 (standard)
• Net Weight: ≈21kg
• Dimensions: 340mm × 206mm × 390mm
