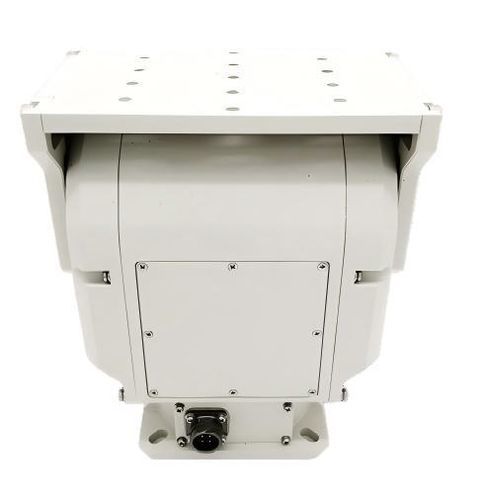

2-axis gimbal YZ-W006YT

for slip ringfor camerasmotorized

Short description
Double-axis Pan-Tilt Head YZ-W006YT. Baseline payload 6 kg; modular variants available up to 120 kg. Continuous 360° pan, tilt ±90°; IP66 ingress protection; worm-gear drive with power-off self-locking. Interfaces and protocols configurable for industrial surveillance and sensor platforms.

• Max. load capacity: 6 kg (baseline)
• Positioning accuracy: ±0.1°
• Housing: high-strength aluminum alloy
• Drive: worm-gear with power-off self-locking (other drives optional)
• Protection: IP66 standard (upgradeable to IP67)

Key features

• Payload range: 6–120 kg; configurable center-of-gravity and mount orientation (top/side)
• Pan: continuous 0–360°; Tilt: -90° to +90° (limited-angle options available)
• Drive options: worm-gear, stepper, brushless — worm-gear provides power-off self-locking
• Repeatability / accuracy: ±0.1° or better
• Speed: pan 0.01–30°/s, tilt 0.01–15°/s (programmable by load/application)
• Control: RS422/RS485/RS232, Ethernet; supports Pelco-D/P, Modbus-RTU and custom protocols
• Power: DC24V / DC48V / AC220V options
• Environmental: IP66 standard, IP67 optional; operating range -40°C to +70°C with heater/defog options
• Integration: presets, auto-cruise/scan, angle feedback; optional slip-ring / RF; top/bottom cable pass-through for power, Gigabit Ethernet, CAN and RF

Typical applications
Long-range PTZ cameras, combined thermal and visible imaging, laser rangefinders, radar surveillance systems, antenna rotators, test turntables and other sensor or instrumentation platforms.

Technical specifications

• Model: YZ-W006YT
• Maximum payload: 6 kg (baseline)
• Payload variants available: 6–120 kg
• Pan travel: continuous 0–360°
• Tilt travel: standard -90° to +90° (limited-angle options available)
• Positioning accuracy / repeatability: ±0.1° or better
• Drive options: worm-gear, stepper motor, brushless motor
• Pan speed: 0.01–30°/s (programmable)
• Tilt speed: 0.01–15°/s (programmable)
• Control interfaces: RS422, RS485, RS232, Ethernet
• Protocol support: Pelco-D/P, Modbus-RTU, custom protocols
• Power supply: DC24V, DC48V, AC220V options
• Ingress protection: IP66 standard (IP67 optional)
• Operating temperature: -40°C to +70°C (with optional heater/defog)
• Housing: high-strength aluminum alloy with sealed bearings and corrosion-resistant coating
• Optional integrations: slip-ring / RF, top/bottom cable pass-through for power, Gigabit Ethernet, CAN and RF
• Functional options: presets, auto-cruise, auto-scan, angle feedback
