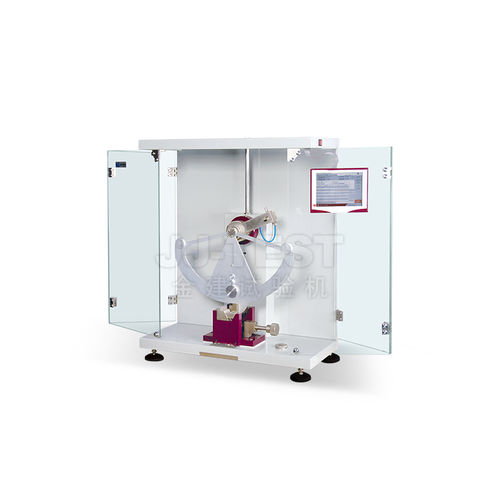

Plastic pendulum impact tester HIT-2492

Izodfor Charpy testingfor IZOD testing

This instrument is mainly used for the determination of the impact toughness of non-metallic materials such as rigid thermoplastic molding and extrusion materials, rigid thermosetting molding materials, and fiber-reinforced thermosetting and thermoplastic composite materials. Standard GB/T 21189 GB/T 1843 GB/T 1043 ASTM D 256-06 ISO 180 ISO 179-1 Features 1. One host can realize two impact test methods of Charpy and Izod. 2. Unique and innovative design of the vice and of the hammer allows operator to run alternatively Charpy and Izod tests without changing the instrument geometry. 3. One impact pendulum can achieve two impact speeds and multiple impact energies. 4. The fan-shaped pendulum has good rigidity, no vibration and small wind resistance. 5. With automatic hammer brake system. 6. As technical core & soul, the innovative hammer blade is also able to be applied in Charpy or Izod test. 7. High-level automation design: Automatic identification of test method, automatic measurement of starting angle as well as automatic calibration of energy loss. 8.The function of automatically measuring the swing period of the pendulum avoids the error of artificial timing, and the measurement is more accurate. 9. Seamless Switching between colorful touch screen provides convenient and flexible operation, by which the superiority also can be demonstrated. 10.This product has passed the EU CE certification, obtained a number of patented technologies, and continuously passed the national accreditation committee "CNAS plastic tensile property test" ability test (T0645, T0771).
