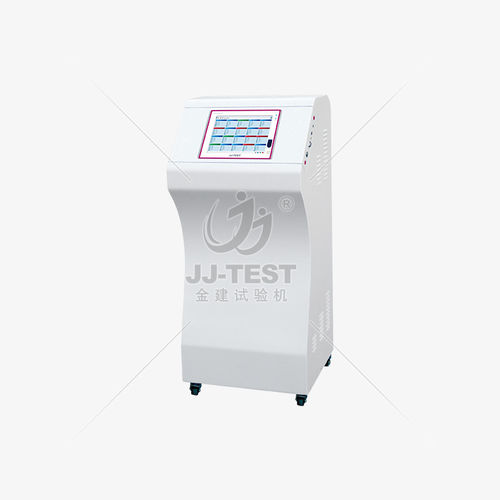

Hydrostatic pressure tester JJHBT

for pipeslaboratorymobile

The JJHBT hydrostatic test host has several specifications and models, and the pressure test range is from 0.02MPa to 350Mpa. The pressure control system adopts a modular design and a dual-loop pressure measurement and control structure. When the pressure is raised, the system automatically judges the diameter of the pipe and the swelling characteristics of the pipe and formulates a boosting plan. The boosting is stable and fast, and the constant pressure is accurate and stable. The supplementary pressure system is not easy to block, adapts to a wide range of water quality, is not afraid of scaling, has sensitive action, low noise and long service life. Features 1. Excellent pressure control performance The exclusive pressure controller is used to achieve high-speed acquisition and precise control of pressure data. Special solenoid valve for pneumatic control, unique control structure and special sealing material, excellent control performance and durability. Intelligent pressure control algorithm, fast boost and stable constant pressure. 2. High stability and high reliability design The unique pressure buffer hardware structure design makes the pressure control more stable. The valve-guided solenoid valve has a modular design, and the instrument has long-term stability. Use international famous brand pressure sensor. 3. Powerful measurement and control software Test management and measurement and control are highly integrated. Based on the test task management mechanism. Based on the concept of networked laboratory management. Support customizable test process. Support multi-sample group report mode.
