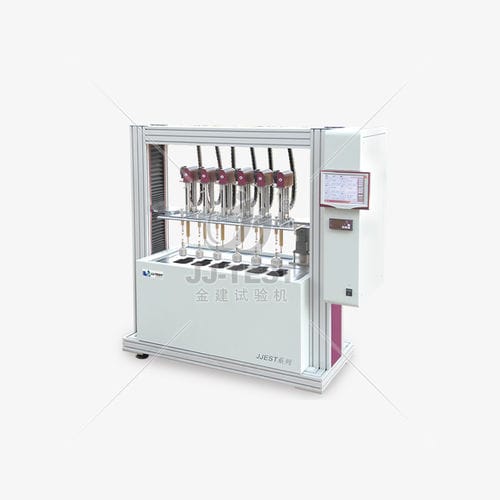

Tensile testing machine JJEST

tensile stress relaxationcomputer-controlledfor materials

This instrument is used for the determination of the tensile stress of ultra-high molecular weight polyethylene (PE-UHMW) molding and extrusion materials, and the value of the tensile stress is used to characterize the melt viscosity characteristics of the material. It is suitable for materials with extremely high molecular weight, and the melt flow rate cannot be determined by the method specified in GB/T 3682-2000 standard. Standard GB/T 21461.2 ISO 11542-2 Features 1. The six stations can be tested independently, which is easy to operate, accurate and reliable. 2. Six stations design, the tensile stress F (150/10) can be measured in one test, and the test efficiency is extremely high. 3. The sample rack has a braking device and a 90mm limiter for easy operation. The sample installation is simple and stable. 4. The lifting and lowering of the sample rack adopts a unique lifting structure, the operation is stable and reliable, and the test operation space is open. 5. The instrument is equipped with an automatic smoke exhaust system, and the test process does not pollute the test environment. 6. Independent of the temperature protection circuit outside the control system, in order to prevent the temperature of the heating medium from exceeding the range of use and accidental fire, a reliable second barrier is established. 7. Program-controlled test operation, automatic timing release of the brake device, automatic start of timing, automatic recording of fixed elongation time.
