Steel grating PRESS-WELDED

galvanised steelforge weldedenclosure

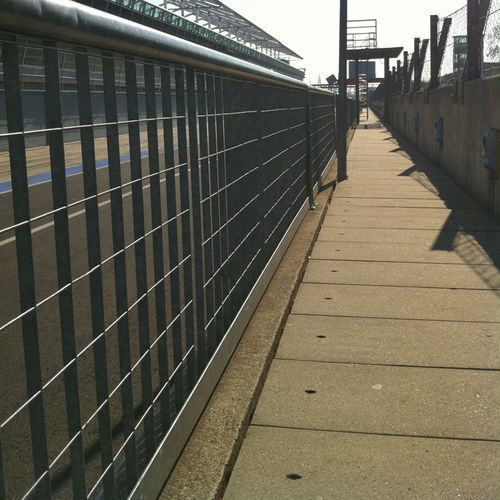

Press-welded gratings for fencing or solid balustrades are manufactured from galvanised steel, with a powder-coated finish to RAL standard if required. They are quick to assemble and offer good resistance. Whether in stadiums, factories, airports or by private individuals, press-welded gratings for fencing are used in a variety of different contexts. MESH The mesh spacing is defined in accordance with the standards and loads that must be respected: Standard meshes: 30x30, 30x44, etc... Standard security meshes: 19x19, 19x40, 30x19, etc... EDF mesh: 30x27. Other options are available on request. BEARER BAR Standard height: 25-60 mm. Standard thickness: 2-5 mm. Other options are available on request. CROSS BAR Twisted square: 4-6 mm. Smooth rounded configuration available on request. DIMENSIONS Maximum length of bearer bars: 6100 mm.. Maximum length of twisted squares: 1000 mm, or greater on request. MATERIAL S235JR steel as per EN 10025 standards
