Steel grating PRESS-WELDED OFFSHORE

forge weldedhigh load capacityplatform

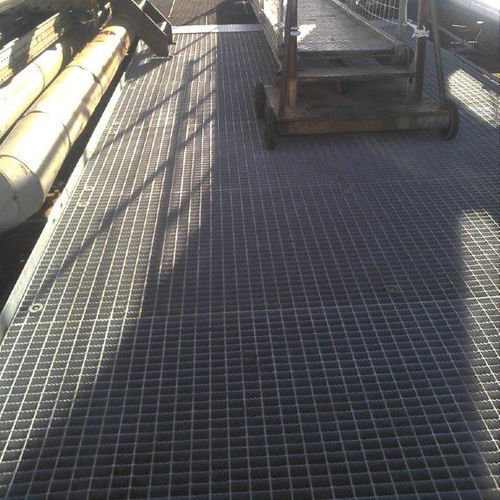

Press-welded offshore gratings are specifically designed for oil rigs. THE BENEFITS OF OFFSHORE GRATINGS: - Notched bearer bars for added stability - Security : security mesh (19x19 19x40...) available that retains bearings of 20mm - Quick to assemble with laps of up to 6 metres in length - Durable, with bearer bars 5mm in thickness MESH The mesh spacing is defined in accordance with the standards and loads that must be respected: Standard meshes: 30x30, 30x44, etc... Standard security meshes: 19x19, 19x40, 30x19, etc... EDF mesh: 30x27. Other options are available on request. BEARER BAR Standard height: 25-60 mm. Standard thickness: 2-5 mm. Other options are available on request. CROSS BAR Twisted square: 4-6 mm. Smooth rounded configuration available on request. DIMENSIONS Maximum length of bearer bars: 6100 mm.. Maximum length of twisted squares: 1000 mm, or greater on request. MATERIAL S235JR steel as per EN 10025 standards.
