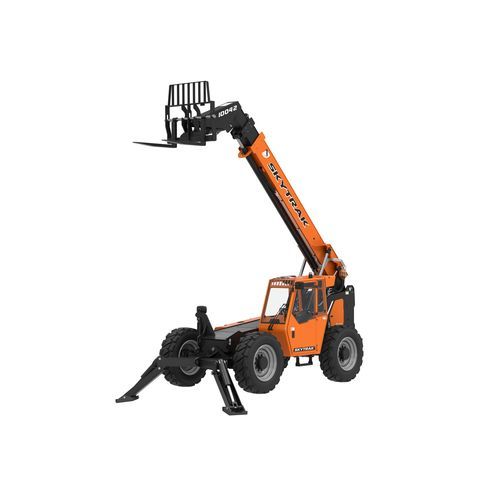

Construction telehandler SkyTrak 10042

Overview
The JLG SkyTrak 10042 is a 10,000 lb rated telescopic handler designed for heavy-duty material handling on construction and industrial sites. It integrates a multifunction electric-over-hydraulic joystick with auxiliary hydraulic circuits and attachment tilt to enable simultaneous control of boom functions and attachments. SmartShift transmission reduces manual shifting and improves driveline performance. The cab features an updated gauge display, integrated armrest and optional air conditioning. Optional 74 hp engine configuration is available without Diesel Exhaust Fluid (DEF). Standard equipment includes LED motion/amber beacon and ClearSky Smart Fleet connectivity hardware.

Key specifications (summary)
Max lift height: 42 ft 1 in
Maximum reach: 26 ft 7 in
Rated capacity: 10,000 lb

Performance
Capacity at max height: 6,000 lb
Capacity at max reach: 6,000 lb

Main features

• Multifunction electric-over-hydraulic joystick with auxiliary hydraulic functions and attachment tilt
• Control system with enhanced diagnostics and configuration options
• SmartShift transmission technology (standard)
• Optional 74 hp engine configuration that does not require DEF
• Standard LED motion/amber beacon
• ClearSky Smart Fleet connectivity hardware included

Cab and controls
Updated cab layout with revised gauge display and integrated armrest. Joystick controls enable intuitive, simultaneous operation of boom and attachment functions. Optional air conditioning available for operator comfort.

Engine and emissions
Optional 74 hp engine configuration available that does not require Diesel Exhaust Fluid (DEF). Engine selections meet applicable emission standards; consult factory for regional configurations.

Stability and versatility
Features Stabil-Trak rear axle stabilization for improved confidence when handling heavy loads and a rear counterweight with integrated tow hitch for increased jobsite versatility.

Safety and connectivity
Standard LED motion/amber beacon improves on-site visibility. ClearSky Smart Fleet connectivity hardware supports telematics, remote diagnostics and fleet management.

Accessories available

• Standard carriage
• Side-tilt carriage
• Side-shift carriage
• Swing carriage
• Double-fork positioner carriage
• Material buckets
• Pallet forks
• Timber forks
• Cubing forks
• Fork-mounted lift hook
• Coupler-mounted lift hook
• Work platform, fork-mounted
• Fork-mounted extensible frame
• Truss boom

Caractéristiques / spécifications techniques

• Brand: JLG
• Model: SkyTrak 10042
• Max lift height: 42 ft 1 in
• Maximum reach: 26 ft 7 in
• Rated capacity: 10,000 lb
• Capacity at max height: 6,000 lb
• Capacity at max reach: 6,000 lb
• Optional engine: 74 hp (no DEF) — optional configuration
• Controls: electric-over-hydraulic multifunction joystick (auxiliary hydraulic functions, attachment tilt)
• Cab: updated gauge display, integrated armrest, optional air conditioning
• Transmission: SmartShift technology (standard)
• Lights: standard LED motion/amber beacon
• Connectivity: ClearSky Smart Fleet hardware included
• Stabilization: Stabil-Trak rear axle stabilization
• Rear counterweight: integrated tow hitch
