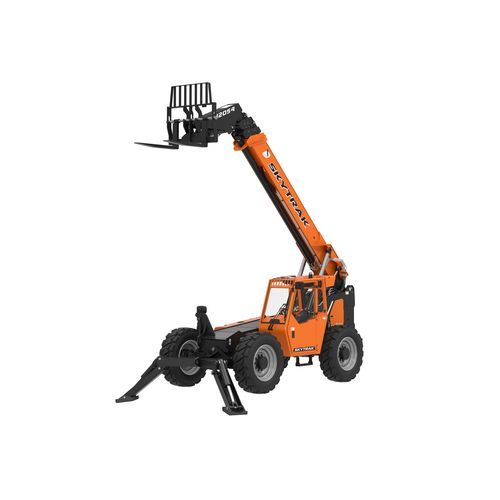

Industrial telehandler SkyTrak 12054

construction

Product overview
The SkyTrak 12054 is a 12,000–lb telehandler engineered for heavy-material handling on construction and industrial sites. It combines high lifting capacity with operator-focused controls and stability systems to support precise load placement and extended on-site use.

Features

• 12,000–lb rated lift capacity (5,443 kg)
• Single joystick control for simplified operation
• Integrated arm rest to reduce operator fatigue
• Optional cab air conditioning for climate control
• Stabil-Trak rear axle stabilization system for improved load-placement confidence
• Standard LED motion/amber beacon for site visibility

Engine & Compliance

• Optional 74 hp (≈55.2 kW) engine available that does not require Diesel Exhaust Fluid (DEF)
• Can be configured to meet Tier 4 Final emissions regulations

Technology

• ClearSky Smart Fleet connectivity hardware included (ClearSky Smart Fleet Enabled)

Performance
Capacity at Max Height: 5,000–lb (2,268 kg)
Capacity at Max Reach: 3,500–lb (1,588 kg)
Max Lift Height: 53 ft 2 in (16.21 m)
Maximum Reach: 38 ft 10 in (11.84 m)
Rated Capacity: 12,000–lb (5,443 kg)

Technical specifications

• Rated Capacity: 12,000–lb (5,443 kg)
• Max Lift Height: 53 ft 2 in (16.21 m)
• Maximum Reach: 38 ft 10 in (11.84 m)
• Capacity at Max Height: 5,000–lb (2,268 kg)
• Capacity at Max Reach: 3,500–lb (1,588 kg)
• Operator comfort: single joystick, integrated arm rest, optional A/C
• Stabil-Trak rear axle stabilization system
• Optional 74 hp (≈55.2 kW) DEF-free engine (meets Tier 4 Final when specified)
• Standard LED motion/amber beacon
• ClearSky Smart Fleet connectivity hardware included
