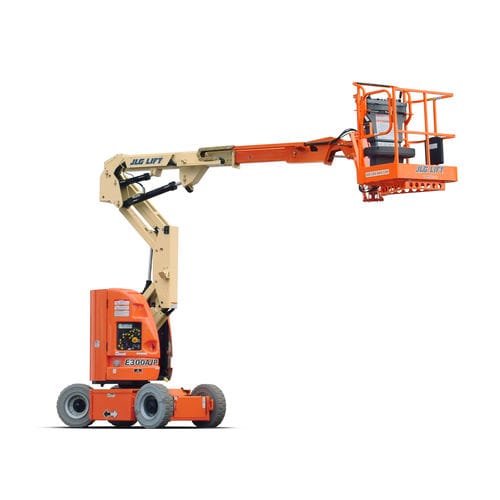

Wheeled articulated boom lift E300AJP

battery-powered

Key Specs • - Working Height: 10.97 m / 36 ft • - Working Outreach: 6.77 m / 22.2 ft • - Platform Capacity: 230 kg / 507.1 lb Key Features • - Increased versatility with the choice of two models with working heights up to 11.00 m • - Increased accessibility with the optional JibPLUS® with side-to-side movement and near-vertical jib operation • - Standard Automatic Traction Control for enhanced terrain performance and increased manoeuvrability • - High-efficiency direct electric drive with longer duty cycles for increased productivity • - Zero emissions for environmentally-friendly equipment Power Source Batteries - 8 x 6V, 305 A-h Electrical System - 48 Volts DC Performance Data Drive Speed - Platform Lowered - 4.80 km/h / 3 mph Gradeability - 2WD - 25 % Platform Capacity - 230 kg / 507.1 lb Swing - 350 Degrees Swing Type - Non-Continuous Turning Radius - Outside - 3.10 m / 10.2 ft Jib - Range of articulation - 144 Degrees Dimensional Data Ground Clearance - 0.1 m / 4 in. Machine Height - 2.01 m / 6.6 ft Machine Length - 5.74 m / 18.8 ft Platform Dimension A - 0.76 m / 2.5 ft Platform Dimension B - 1.22 m / 4 ft Tailswing - 0 m / 0 in. Tyre size - 25 x 7 x 12 Non-marking Wheelbase - 1.65 m / 5.4 ft Reach Specifications Working Height - 10.97 m / 36 ft Working Outreach - 6.77 m / 22.2 ft Horizontal Jib Rotation - 180 Degrees Horizontal Outreach - 6.12 m / 20.1 ft General Specifications Capacity - Hydraulic Reservoir - 10.98 L / 2.9 gal. Machine Weight (CE & GOST) - 7100 kg / 15652.8 lb
