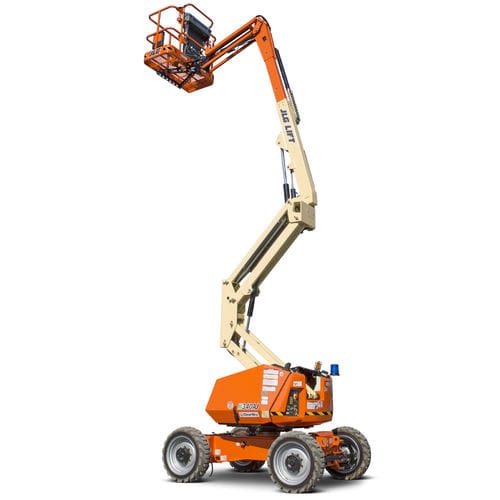

Wheeled articulated boom lift H340AJ

diesel-electric hybridindoor/outdoor

Key Specs • - Working Height: 12.33 m / 40.5 ft • - Working Outreach: 6.70 m / 22 ft • - Platform Capacity: 230 kg / 507.1 lb Key Features • - Diesel-like performance – Four independent AC electric-drive motors and a diesel-powered generator provide exceptional diesel-like terrain ability • - Hybrid technology – Powered by 8 x 12v 100 amp-hour maintenance free AGM batteries, charged by the onboard diesel generator for an extended uptime • - Versatility – The power of trusted diesel-like performance combined with hybrid efficiency allows you to work any job site environment, inside and outside • - Low emissions – Experience up to 30% fuel reduction*, emissions, noise and maintenance Power Source Batteries - 12V, 100 Amp-Hour AGM Electrical System - 48 Volts DC Generator / Engine - Brand - Kubota Performance Data Drive Speed - Platform Lowered - 6 km/h / 3.7 mph Gradeability - 4WD - 45 % Platform Capacity - 230 kg / 507.1 lb Swing - 355 Degrees Swing Type - Non-Continuous Jib - Range of articulation - 139 Degrees Dimensional Data Ground Clearance - 0.24 m / 0.8 ft Machine Height - 2 m / 6.6 ft Machine Length - 5.52 m / 18.1 ft Platform Dimension A - 0.76 m / 2.5 ft Platform Dimension B - 1.52 m / 5 ft Tailswing - 0.05 m / 2 in. Tyre size - 265/50 D20 Wheelbase - 1.87 m / 6.1 ft Reach Specifications Horizontal Jib Rotation - 0 Degrees Horizontal Outreach - 6.06 m / 19.9 ft Working Height - 12.33 m / 40.5 ft Working Outreach - 6.70 m / 22 ft General Specifications Capacity - Hydraulic Reservoir - 77.90 L / 20.6 gal. Machine Weight (CE & GOST) - 4472 kg / 9859.1 lb Maximum Ground Bearing Pressue - 4.50 Kg/cm2
