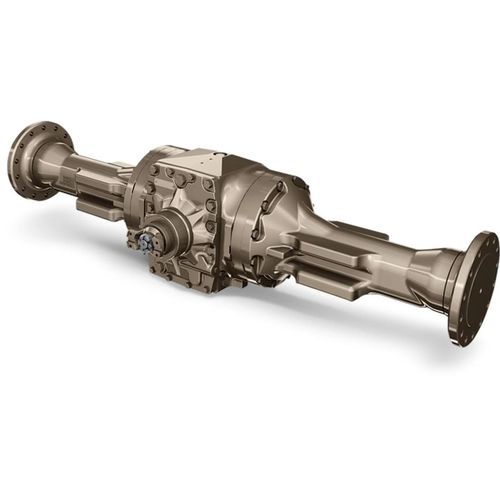

Construction equipment axle 1200

off-road vehiclefor heavy loadswith disc brake

Overview
John Deere axles are designed to operate in a wide range of rugged off-highway conditions, backed by a reputation of reliability and customer service.

Features

• Built-in durability
• Engineered for heavy loads
• Customizable configurations
• Long service life with reduced maintenance

Benefits
High torque, low speed
TeamMate II axles are designed for heavy-duty applications in forestry, mining and construction. The high-torque, low-speed design and modular building-block concept allow thousands of configurations to match equipment requirements.

Advanced braking and differential options
Multiple inboard wet disc brakes for cool, long-lasting operation and spark-free braking for hazardous environments. Choose from Standard, No-Spin, or operator-controlled John Deere DIF-LOK differentials to improve traction, maneuverability and tire life.

Inboard planetary
Large inboard planetary reductions handle high torque and forward-reverse transitions without encroaching on wheel space, preserving wheel and tire size flexibility.

General axle data
Peak Vertical Load: 240000 N
Peak Axle Output Torque (Per Axle Shaft): 35000 Nm
Reduction Ratio, Minimum: 4.333
Reduction Ratio, Maximum: 33.429
Oil Capacity: 19 L
Flange To Flange Narrow: 1300 mm
Flange To Flange Offset: 1500 mm
Flange To Flange Standard: 1700 mm
Flange To Flange Wide: 1953 mm
Approximate Dry Weight: 726 kg

Technical specifications

• Peak Vertical Load: 240000 N
• Peak Axle Output Torque (Per Axle Shaft): 35000 Nm
• Reduction Ratio, Minimum: 4.333
• Reduction Ratio, Maximum: 33.429
• Oil Capacity: 19 L
• Flange To Flange Narrow: 1300 mm
• Flange To Flange Offset: 1500 mm
• Flange To Flange Standard: 1700 mm
• Flange To Flange Wide: 1953 mm
• Approximate Dry Weight: 726 kg
