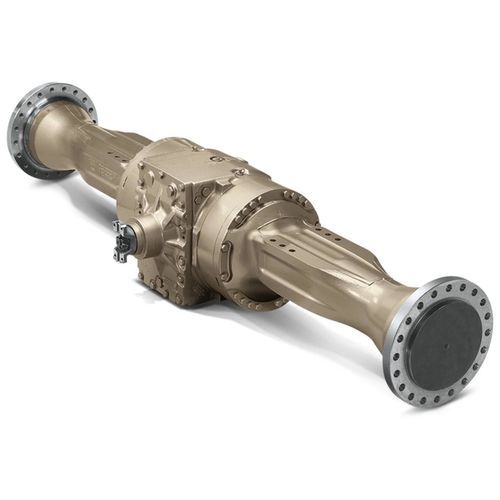

Tractor axle 1400

for construction equipmentoff-road vehiclefor heavy loads

Overview
John Deere 1400 Series axles are engineered for heavy off‑highway applications such as forestry, mining, construction and specialized agricultural vehicles. Designed for high torque at low speeds, they offer multiple configurations to match vehicle and application requirements.

Key Benefits

• Built for durability in severe off‑road conditions
• Optimized for heavy loads and high torque demands
• Configurable with multiple axle, brake and differential options
• Extended service intervals with robust sealing and bearings

Details

• High Torque, Low Speed — TeamMate II architecture supports heavy‑duty duty cycles and a modular, building‑block approach enabling thousands of configurations to suit different chassis and applications.
• SWEDA (Super Wide Extreme Duty Axle) — Reduces ground disturbance with a 2540 mm flange‑to‑flange width, oversized axle shafts and high outboard bearing capacities. Metal‑to‑metal face seals reduce leakage and ingress in harsh environments.
• Advanced Braking and Differential Options — Available multiple inboard wet disc brakes for cooler, long‑life braking and spark‑free operation in hazardous atmospheres. Differential options include Standard, No‑Spin and operator‑controlled John Deere DIF‑LOK for enhanced traction, maneuverability and tire life.

Specifications
Peak Vertical Load: 300000 N
Peak Axle Output Torque (Per Axle Shaft): 47400 Nm
Reduction Ratio, Minimum: 16.208
Reduction Ratio, Maximum: 32.914
Oil Capacity: 28 L
Flange To Flange Narrow: 1700 mm
Flange To Flange Narrow, 6.4:1 FD: 1810 mm
Flange To Flange Standard: 1953 mm
Flange To Flange Standard, 6.4:1 FD: 2063 mm
Flange To Flange, SWEDA: 2540 mm
Approximate Dry Weight: 862 kg

Specifications / Technical data

• Peak Vertical Load: 300000 N
• Peak Axle Output Torque (Per Axle Shaft): 47400 Nm
• Reduction Ratio: Min 16.208 — Max 32.914
• Oil Capacity: 28 L
• Flange‑to‑Flange widths: Narrow 1700 mm; Narrow (6.4:1 FD) 1810 mm; Standard 1953 mm; Standard (6.4:1 FD) 2063 mm; SWEDA 2540 mm
• Approximate Dry Weight: 862 kg
