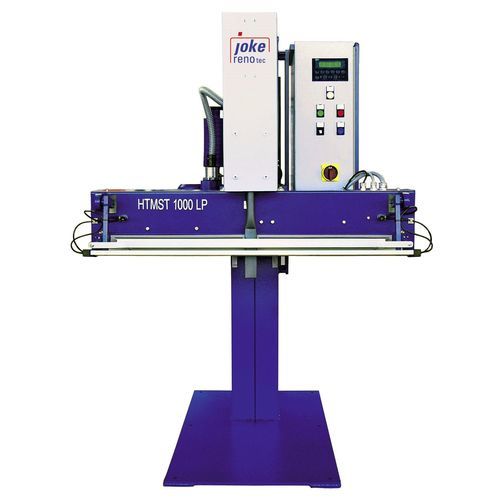

Manual impulse sealer HTMST 1000 NA LP

horizontalsachetfor film

Distance between pedestal and sealing bar min/max: 700/1200 mm Display: Touchscreen Sealing wire upper bar: Flat heating band 6x0,25x1000/1200mm Sealing wire lower bar: Flat heating band 6x0,25x1000/1200mm Technical data • Fuse : 16 A, slow-blow • Connected Voltage : 400 V • Film passage : 1000 mm • Weight : 240 kg • Sealing wire upper bar : Flat heating band 6 mm x 0,25 x mm 1000/1200 mm • Sealing wire lower bar : Flat heating band 6 mm x 0,25 x mm 1000/1200 mm • Impulse time : continuously digitally adjustable • Cooling time : continuously digitally adjustable • Emergency stop : yes • Range of action : 153 mm • Bar opening : 30 mm • Degree of protection : IP 54 • Max. sealing output : 2 x 0,4 mm PE-Foil • Sealing : Impulse-heated • Security feature : Machine stops automatically in case of an item bigger than 4 mm between the sealing bars during the sealing process. • Control : SPS
