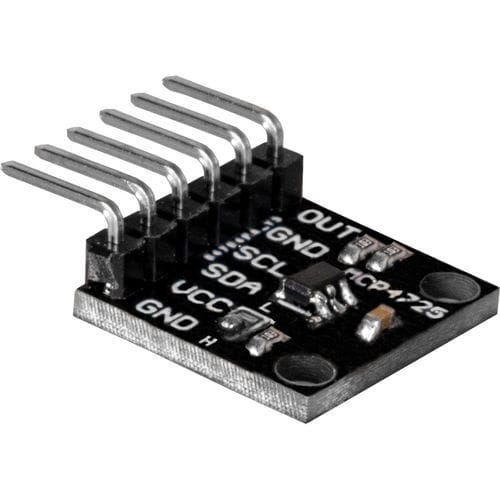

Digital-analog converter COM-DAC01

With this digital to analog converter, you can generate an analog voltage using a digital I2C signal. The I2C address can be changed from 0x60 to 0x61 by changing a solder bridge. The DAC has an integrated EEPROM memory, which makes it possible to output the desired voltage directly at startup. SPECIAL FEATURES Integrated EEPROM (14 bit) SUPPLY VOLTAGE VCC 2.7 V bis 5.5 V LOGIC LEVEL Vcc OUTPUT VOLTAGE Dn = 12 bit Input code Vout = (Vcc×Dn)÷4096 MAX. OUTPUT CURRENT 25 mA RESOLUTION 12 bit INTERFACE I2C I2C ADDRESS 0x60 can be changed to 0x61 with solder bridge DIMENSIONS 16 x 21 x 8 mm WEIGHT 2 g
