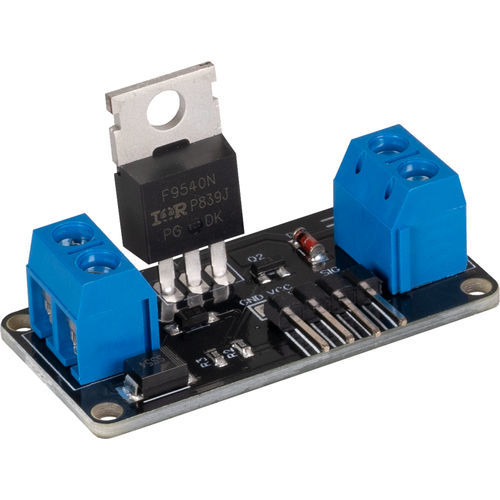

Field-effect transistor COM-MOSFET

With this MOSFET, you can control a voltage of up to 36 Volts. With the pulse width modulation, the rootmean-square voltage can be lowered (f.e. to dim a LED light). COMPATIBLE WITH Arduino, Raspberry Pi, etc. CONTROL VOLTAGE min. 2V INTERFACES 2 x2 pin terminal blocks and 4 Pin JST connector PIN ASSIGNMENT 1. GND: Ground 2. VCC: Voltage 3. NC: Not connected 4. SIG: Signal SPECIAL FEATURES MOSFET draws current also over the SBC when no source voltage is available RMS voltage can be reduced by PWM DIMENSIONS 40 x 22 x 20 mm
