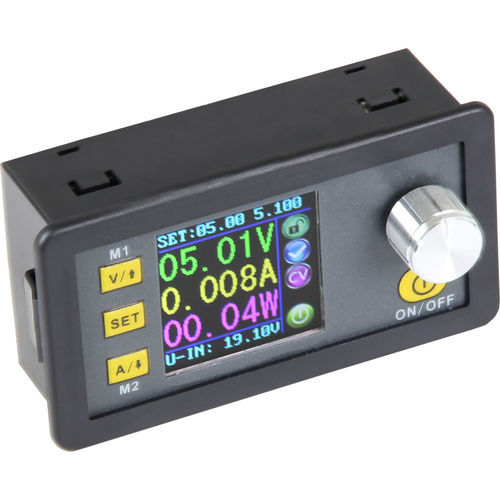

Analog programmable module DPS5015

This programmable module for controlling voltage with a constant voltage and current which together is an analog integration and digital controll of functions in one device. This device has an internal storage and a color OLED Display with 3,6 cm (1.44'') to display fast important data. All needed settings are set up with three buttons and a knob, This high precision and compact structure enables a huge area of application. High-quality components and the possibility of communication interfaces make the power supply stand out. In addition, you can supplement the laboratory power supply with the optionally available housing, BT and USB modules. Thus your laboratory power supply receives a suitable housing and you can communicate via USB or BT with the laboratory power supply, retrieve data and make settings. SPECIAL FEATURES Remote control, programmable, slim design INPUT VOLTAGE 6 - 60V (DC) OUTPUT VOLTAGE 0 - 50V OUTPUT CURRENT 0 - 15A OUTPUT POWER 0 - 750W VOLTAGE RESOLUTION 0,01V CURRENT RESOLUTION 0,01A RIPPLE 100mV (pp) at maximum load DISPLAY SIZE 1,44“ DISPLAY MODULE SIZE 80 x 42 x 45 mm POWER MODULE SIZE 40 x 67 x 91 mm WEIGHT 152g
