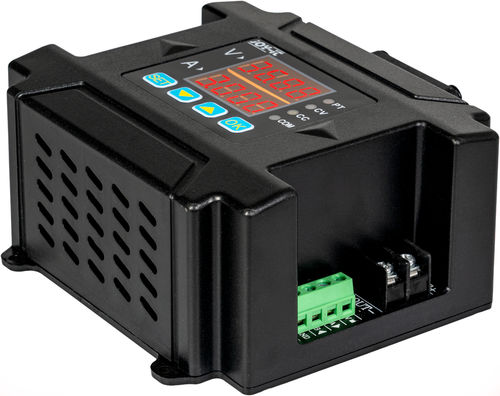

DC/DC power supply JT-DPM8605

programmable

The DPM8605 is a programmable buck power supply which converts voltage and current down. It has both a constant voltage - and a constant current mode. With its TTL interface, it is possible to manage any setting comfortably via your PC with a free software. This easy operability and the high accuracy of the current and voltage display make this device stand out. On the device, there are 4 buttons to control it manually, too. The display has got a diagonal of 1,7 Inch (4,3cm). As optional equipment for this power supply, there is a wireless control panel available, which enables telecommanding from a distance of up to 10 meters (without any obstacles) to any setting and data. INTERFACE TTL OUTPUT CURRENT 0 - 5 A VOLTAGE RESOLUTION 10 mV RIPPLE < 50 mVpp RESPONSE TIME < 50 ms VOLTAGE DISPLAY ACCURACY 10 mV VOLTAGE FAULT TOLERANCE 2 ‰ + 1 digit CURRENT FAULT TOLERANCE 5 ‰ + 1 digit OPERATING TEMPERATURE -10°C - 45°C DIMENSIONS 131 x 112 x 55 mm WEIGHT 0,26 kg
