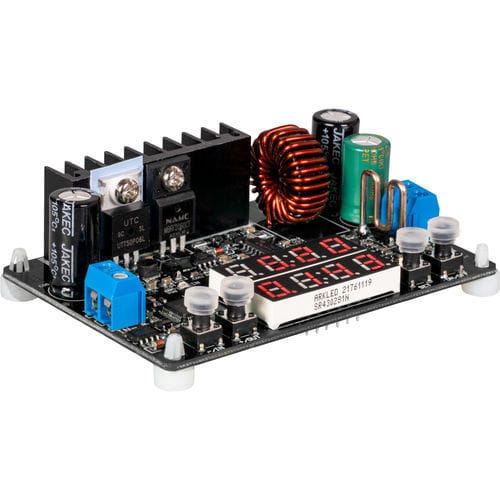

This voltage converter module can convert input voltages of 6 - 40 V (DC) down to an output voltage of 0 - 32 V (DC).
The segment displays can show the input and output voltage as well as the output current.
The module can be used in constant voltage or constant current mode.
MODEL
Step-down converter with adjustable output
SPECIAL FEATURES
Current and voltage display on the module, constant voltage and constant current operation
INPUT VOLTAGE
6 - 40 V (DC)
OUTPUT VOLTAGE
0 - 32 V (DC)
OUTPUT CURRENT
Max. 5 A
OUTPUT POWER
Max. 160 W
CONNECTION
2 x 2 pin screw terminal
OUTPUT VOLTAGE RESOLUTION
0.01 V (DC)
OUTPUT CURRENT RESOLUTION
0.001 A
ACCURACY OF THE OUTPUT VOLTAGE
± (0.5% +3 digits)
ACCURACY OF THE OUTPUT CURRENT
± (1% +5 digits)
RESIDUAL RIPPLE (AT 40 V TO 32 V / 5 A)
100 mVpp
INPUT TO OUTPUT VOLTAGE RATIO
x1.1
DIMENSIONS
85 x 58 x 26 mm
WEIGHT
67 g
