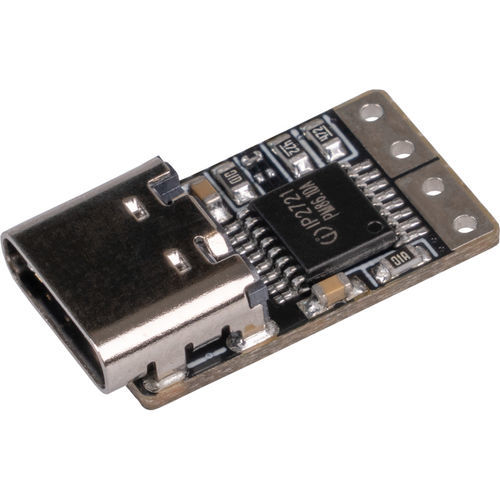

With this small module, you can trigger USB-PD protocols and thus, for example, charge your laptop via a PD-capable USB-C power supply. The output voltage can be adjusted in three steps (5 V, 15 V and 20 V) by setting a resistor.
The module is highly integrable due to its small form factor and flexible output interface.
OUTPUT VOLTAGE
5 V / 15 V / 20 V (adjustable via resistors 0201 Imp.)
SUPPLY VOLTAGE
(up to 20 V / 100 W) USB-PD-capable power supply (not included)
OUTPUT CURRENT
5 A at 20 V, 3 A at <20 V
OUTPUT POWER
100 W max.
INPUT INTERFACE
USB-C
OUTPUT INTERFACE
Solder pads
SPECIAL FEATURES
Adjustable output voltage
DIMENSIONS
19 x 10 x 5 mm
ITEMS SHIPPED
COM-ZYPDS Modul
