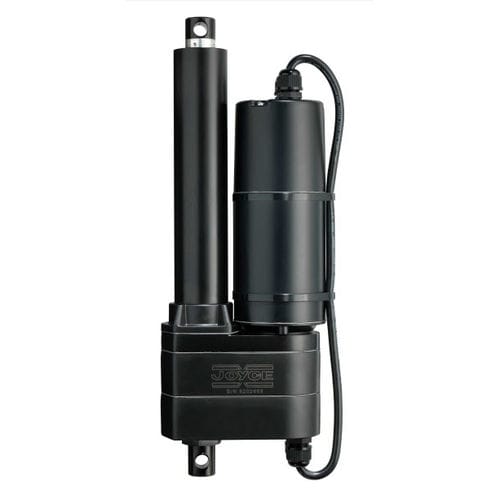

Electric cylinder MA series
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Stroke
Max.: 457 mm
(17.992 in)Min.: 153 mm
(6.024 in)- Force
Max.: 7,000 N
Min.: 0 N
- Speed
Max.: 41 m/s
(134.51 ft/s)Min.: 6 m/s
(19.69 ft/s)
Description
Joyce MA2547, MA3527, MA4514, and MA7007, multipurpose linear actuators are compact, versatile and designed to lift 7000N (1574 pounds) dynamic load, and 13,600N (3057 pounds) static load. Each 120 VAC actuator is equipped with a potentiometer and adjustable, preset limit switches, and offers an IP65 rating that qualifies them for many wash-down and outdoor duty applications.
Clevis-to-clevis mounting
Stroke lengths of 153 mm (6 in.), 305 mm (12 in.), and 457 mm (18 in.)
Self-locking
25% duty cycle
Steel extension tube
