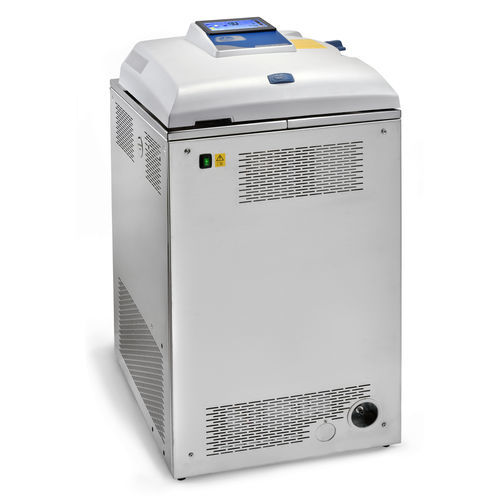

Process autoclave Steril Pres USB -150

laboratoryvacuumautomatic

Autoclave for liquid sterilization Steril Pres USB -150 designed for the safe and controlled processing of liquids, solids and culture media. PLC-based control ensures precise management of sterilization cycles, data logging and report generation.

Functions and control

• PLC control of air extraction, sterilization and drying cycles.
• Temperature and time regulation via PLC.
• Up to 60 configurable programs.
• Cycle data logging (memory for over 500 cycles) and real-time process display.
• Error display on panel with acoustic alarm and automatic steam generator shutdown in case of fault.

Operation and connectivity

• Selectable units and interface languages: Spanish, English and French.
• Options available: printer and clock; external water inlet.
• Report generation in PDF and CSV formats.

Safety and calibration

• User password for access control.
• Probe and pressure calibration functions.
• Multiple integrated safety systems.

Design and steam system

• External cabinet and chamber in stainless steel.
• Purge by vacuum pump.
• External steam generator.

Technical specifications

• Temperature range: 105 - 128 °C.
• Sterilization time range: 3 - 59 minutes.
• Configurable programs: up to 60.
• Record memory: more than 500 cycles.
• Temperature and pressure control by PLC.
• Purge by vacuum pump and external steam generator.
• Data output: PDF/CSV reports.
• Supported languages: Spanish, English, French.
• Additional features: printer, clock, external water inlet.
• Safety: user password, visual and acoustic alarms, automatic steam generator shutdown on errors.
• Materials: external cabinet and chamber in stainless steel.
• Ref: 4002443.
• User manual available in PDF.
