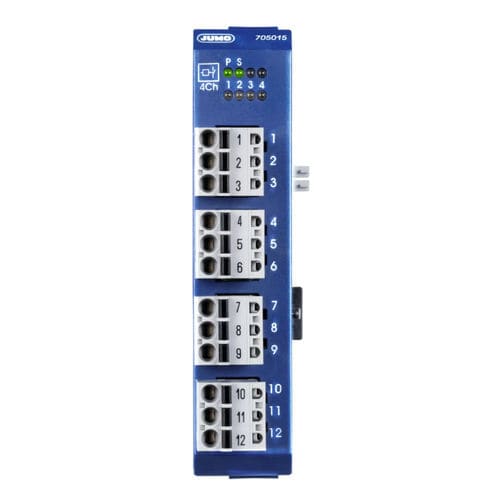

Switching relay module mTRON T

DCACdigital

The relay module provides 4 relay outputs, which are controlled via the system bus by digital signals (assignment in the connection list or directly by the PLC). Each relay output is equipped with a changeover contact AC 230 V/3 A. Automatic configuration (Plug and Play) Connection of outputs on the front Removable terminal strips for each channel general technical data Connections - Removable terminal strips with PUSH IN technology Special features - Switching statuses are visualized with LEDs, automatic configuration after replacement of the module insert (Plug and Play), connection of outputs on the front, fast wiring of operating voltage and system bus provided by simple module connection principle Approvals - UL, metrological certificate, DNV GL Ambient temperature - -20 to +55 °C Voltage supply - DC 24 V +25/-20 % Dimensions (W × H × D) - 22.5 mm × 103.6 mm × 101.5 mm (without connection elements)
