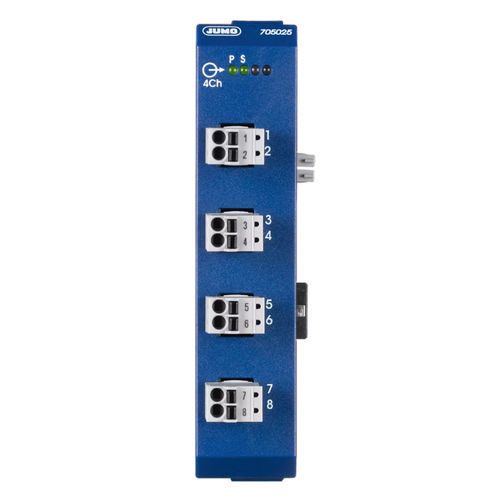

Analog output module mTRON T

4-channel4 analog outputstemperature

The analog output module 4-channel is equipped with 4 outputs. The output signal, 0(2) to 10 V or 0(4) to 20 mA, can be configured individually for each channel. The analog outputs are controlled via the system bus. Configurable behavior in the event of malfunction Removable terminal strips Connection of outputs on the front general technical data Special features - Configurable behavior in the event of malfunction, automatic configuration after replacement of the module insert (hot swap capable), connection of outputs on the front, fast wiring of operating voltage and system bus provided by simple module connection principle Connections - Removable terminal strips with PUSH IN technology on the front Approvals - UL, DNV GL Housing - Plastic housing for DIN-rail mounting in the control cabinet Ambient temperature range - -20 to +55 °C Dimensions (W × H × D) - 22.5 mm × 103.6 mm × 101.5 mm (without connection elements)
