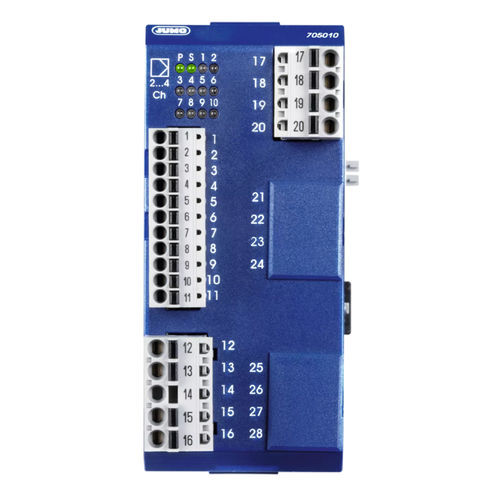

Digital controller module mTRON T

The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V). The inputs and outputs can be extended Customer-specific linearization Reliability through independent operation general technical data Special features - Up to 4 independently user configurable PID control loops with a fast cycle time and tried-and-tested control algorithms, independent operation, math and logic functions, counter input up to 10 kHz Number of analog inputs - 2 + 2 (optional) A/D converter - Dynamic resolution up to 16 bit Number of digital inputs - 2 + 6 (optional) Controller types - Two-state controller, three-state controller, three-step controller, continuous controller, continuous controller with integrated position controller Voltage supply - DC 24 V +25/-20 % Current consumption - Max. 300 mA (at DC 19.2 V) Housing - Plastic housing for DIN-rail mounting in the control cabinet Approvals - UL, DNV GL Ambient temperature - -20 to +55 °C Dimensions (W × H × D) - 45 mm × 103.6 mm × 101.5 mm (without connection elements)
