Control transformers

Primary voltage: 230, 245, 400, 415 V
Secondary voltage: 230 V

High quality safety and isolating transformers designed for use in control circuits and general applications Low loss noise laminations Dual standard primary winding 230 / 400Vac with +15V tap for input ...

Current: 0.17 A - 1.17 A
Electric power: 0.03 kVA - 0.25 kVA

Transformers have to be flexible because different situations require different voltages. Murrelektronik's product range offers this flexibility, no matter if it's an isolation transformer, control ...

Electric power: 3,700 W
Primary voltage: 230 V
Secondary voltage: 230 V

230EC3700/IRC Single-phase energy-efficient isolating transformer IP00 Low Inrush current - Upri 230-245V Usec 0-230V - Power 3700VA

Electric power: 40 W
Primary voltage: 230, 400 V
Secondary voltage: 230 V

EDR 230TC40 Single-phase control transformer IP20 - for DIN-rail mounting - Upri 15-230-400V // Usec 0-0-230V - Power 40VA - Inrush power 90VA

Electric power: 40 W
Primary voltage: 400, 230 V
Secondary voltage: 24 V

EDR 24TC40 Single-phase control transformer IP20 - for DIN-rail mounting - Upri 15-230-400V // Usec 0-0-24V - Power 40VA - Inrush power 90VA

Electric power: 50 W - 2,000,000 W
Primary voltage: 1 V - 1,000 V
Secondary voltage: 1 V - 1,000 V

The single-phase and three-phase insulation transformers are equipped with either copper or aluminum windings. These units feature air-type cooling and can perform up to 2000 kVA, with a frequency up to a maximum of 1000 ...

Current: 0.01 A - 3,000 A
Electric power: 30 W - 30,000 W
Primary voltage: 230, 400 V

Compliant with standard EN 61558-2-6 • Standard voltages Input winding 230/400 V Output winding 12, 24, 48 V • Other voltages available on request • Electrostatic screen available on request • Ambient temperature 40 °C • Protection ...

The transformer, manufactured by J. Schneider Elektrotechnik, is designed for the transmission, utilization and distribution of electrical energy. This is equipped with large product batches which are used to produce ...

Current: 0.05 A

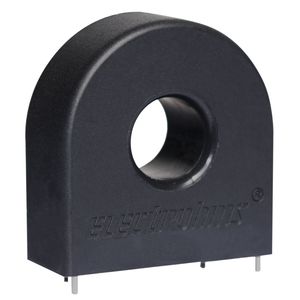

Protection and control of industrial equipment like AC drives, DC drives, inverters, current monitoring, and allied equipment SPECIFICATION Product No CT1317 Ipn RMS(A) 0 Turn Ratio 1 : 645 Pri. Opening (mm) 9.0 Temp. ...

Current: 0.3 A

Protection and control of industrial equipment like AC drives, DC drives, inverters, current monitoring, and allied equipment APPLICATION Motor protection/monitoring SPECIFICATION Product No CT1337-RC Ipn ...

Current: 2 A

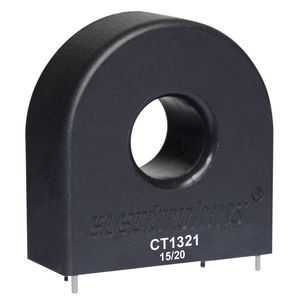

Protection and control of industrial equipment like AC drives, DC drives, inverters, current monitoring, and allied equipment APPLICATIONS Lighting Battery energy management SPECIFICATION Product No CT1321 Ipn ...

... Pick & Place compatible Footprint : SMD 18 x 14.5mm MAX RMS current rating : up to 0.5Arms 1:1+1 turn ratio for bridge control Working frequency from 90 to 125kHz 3kV isolation between primary and secondary High ...

Primary voltage: 0 V - 500 V

Features •Gate-Drive Transformer for IGBT control •Forward operation (demagnetizing winding included) •Working voltage up to 500Vdc •Insulation 3kV •ETmax product of 16Vµs •Wide operating temperature ...

Primary voltage: 500 V

Features •Gate-Drive transformer for thyristors driver •Working voltage up to 500Vdc •Functional insulation at 500V •ETmax product of 200Vµs •Wide operating temperature range -40 to +105°C •UL94 and RoHS materials •AEC-Q200 ...

Electric power: 0.024 kVA
Primary voltage: 230 V
Secondary voltage: 24 V

12/24V ac transformer. Dimensions (L x W x D): 90 x 55 x 65mm. Primary voltage 230V ± 10 %, 50/60 Hz. Standard EN 61558-2-8. Power 24VA. Secondary 24V - 2 x 12V with midpoint. DIN rail: Number of modules: 3. Class II. IP ...

Current: 1.04, 2.08 A
Electric power: 0.025, 0.05 kVA
Primary voltage: 120, 208, 347, 480, 600 V

Small Chassis Mount - Control Transformers Used as a small 24 volt transformer for relay, pilot lights or low voltage, low power control use. 60 Hz. operation. Chassis ...

Primary voltage: 25,000 V
Secondary voltage: 120, 240 V

Control Power Transformers are single-phase transformers used to supply control power in switchgear and transformers. Primary voltages are up to 25000V ...

Electric power: 0.001 kVA - 0.8 kVA

Control transformer in accordance to VDE 0570, Part 2-2, EN 61558-2-2. Safety transformer (SEC bis 42V) in accordance to VDE 0570, Part 2-6, EN 61558-2-6. Isolating transformer ...

Electric power: 5 kVA - 150 kVA

These are MV Control Power Transformers that feature indoor designs for use in medium voltage switchgear. Other features include a 5kV to 34.5kV class, 60 to 150kV BIL, a 5 to 75kVA single phase, ...

Primary voltage: 230 V - 400 V
Secondary voltage: 24 V - 230 V

General Data Rated input voltage 230 ‑ 400 Vac Rated output voltage 24 ‑ 230 Vac Rated power 63 ‑ 2500 VA Insulation class B Maximum ambient temperature 40 °C Efficiency up to 95 % Degree of protection IP 00 Advantages Very good switch‑on ...

Electric power: 0.01 kVA - 31.5 kVA

The TR 21 CONTROL Transformers is a control and safety or seclude single-phase transformers. This device employs the principle of mutual induction to proselytize variations ...

Primary voltage: 230, 500, 440, 415, 400 V
Secondary voltage: 230, 42, 24 V

Control-Power transformers are used to supply control circuits. Their application is laid down in DIN VDE 0570/2-2 which recommends the use of control-power transformers ...

Current: 6.3, 3.15 A
Secondary voltage: 65 V - 230 V

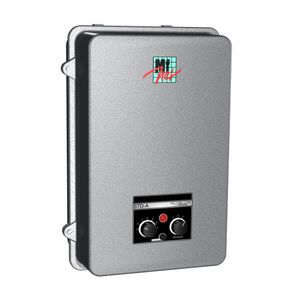

The SEA Series is a type of transformer in the Mf-net program manufactured by Vostermans Ventilation. The SEA series includes the SEA 3.15 and SEA 6.3. These transformers can be controlled manually, in ...

Electric power: 100 W - 20,000 W

... trade electromechanical technology, to develop high-qualityand high-efficiency transformers, which can be applied in CNC digital control machine, precision machines and ...

Electric power: 0 kVA - 20,000 kVA
Primary voltage: 0 kV - 24 kV

... Pressure Impregnated (VPI) dry type IEC transformers Power range up to 12 MVA Primary voltages up to 17,5 kV Transformers for LV and MV drives Three-, four- and five- winding solutions for up to full ...

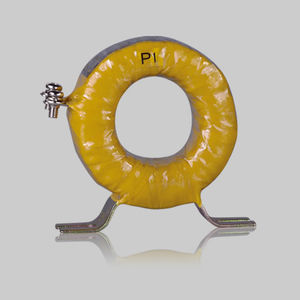

LM-0.5 series transformer is indoors type current transformer,is applicable for circuit of rated frequency 50Hz,rated voltage is 0.5kV and below. It is used to transmit signal to measure meter,or relau ...

Electric power: 0.05 kVA - 1 kVA
Primary voltage: 120, 240 V
Secondary voltage: 12, 24 V

Group A - TB Series Transformers 120 x 240 Primary Volts - 12/24 Secondary Volts - 1Ø, 50/60Hz

Electric power: 0.03 kVA - 4 kVA
Primary voltage: 100 V - 690 V
Secondary voltage: 12 V - 250 V

... no. 66 For use according to: • IEC/EN 60204-1 / ÖVE EN13 • VDE 0113 / VDE 0100 part 410 Typical applications: • Control voltage circuits • Functional low voltage Basic equipment: • Separate windings • ...

Current: 0.12 A - 10.86 A
Electric power: 0.05 kVA - 2.5 kVA
Primary voltage: 15 V - 400 V

MCL Range MCL Range Control Panel Transformers offering 230V and 400V with adjustment tappings. Designed and manufactured to comply with IEC61558. This high quality product is manufactured using automated ...

Electric power: 5 kVA

Safety and isolating single-phase transformers are made of low losses magnetic plates, permanent regime class F (155 ºC) copper conductor. Clamp type terminal blocks, compact dimensions and weight reduction make easier installation.

Primary voltage: 220 V - 575 V
Secondary voltage: 23 V - 240 V

The HSZ series of industrial control transformers are designed for applications requiring special mounting and are available in ratings from 1 through 10 kVA.
