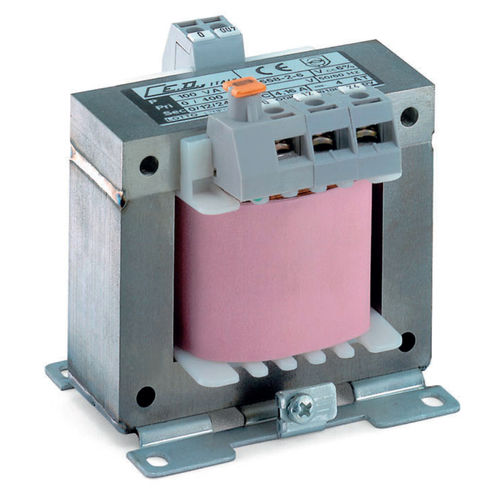

isolation transformer / dry / energy-saving / multi-winding

{{requestButtons}}

Characteristics

  • Type:

    isolation

  • Configuration:

    dry

  • Other characteristics:

    laminated, safety, control, primary, secondary, quick-connect, open type, with copper windings, low-loss, energy-saving, low-voltage, multi-winding, single-phase

  • Applications:

    for indoor service, industrial, protection, for electrical networks, for outdoor service, for UPS, telecommunications, for medical applications, for railway applications, for industrial applications, for machine tools, high-power, for marine applications, for industrial use

  • Current:

    Min.: 0.01 A

    Max.: 3,000 A

  • Electric power:

    Min.: 30 W

    Max.: 30,000 W

  • Primary voltage:

    230 V, 400 V

    Min.: 1 V

    Max.: 1,000 V

  • Secondary voltage:

    12 V, 24 V, 48 V

    Min.: 1 V

    Max.: 50 V

Description

Compliant with standard EN 61558-2-6
• Standard voltages
Input winding 230/400 V
Output winding 12, 24, 48 V
• Other voltages available on request
• Electrostatic screen available on request
• Ambient temperature 40 °C
• Protection rating IP00
• Electrical protection rating I
• Thermal insulation class B
• Fixing brackets compliant with DIN standards
• Connection terminals IP 20
