For monitoring & programming
The Display Modules and Keyboard/Display Module can be used together with Controllers equipped with a Module Interface. The Display Modules are used for displaying process parameters read from Controller data. The Keyboard/Display Module offers the additional facility for keying-in motion-control parameters to the Controller, thus providing a very flexible and simple operator interface.
The Display Modules use 5½-digit LED displays and are available either as single- or double displays for mounting in DIN cabinets. The display unit in the Keyboard/Display Module is an easily read, super-twist LCD display. This Module is equipped with robust membrane pushkeys which are easy both to use and clean. The Keyboard/Display Module is additionally available for 19" rack mounting.
5½ digit LED displays. (KDM10T/D)
DIS10 Display PCB
DIS11 1 DIS10 in DIN cabinet 36x72 mm DIS12 2 DIS10 in DIN cabinet 72x72 mm

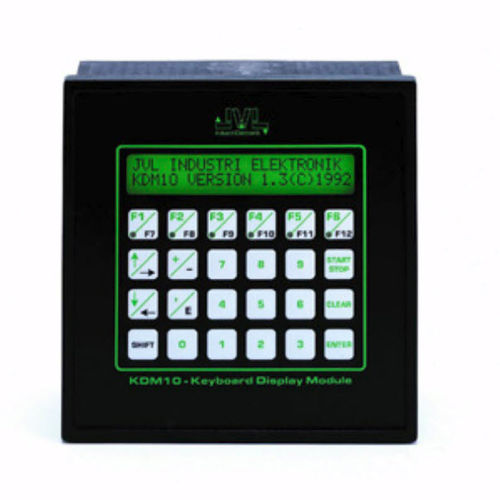

Keyboard/Display Modules KDM10D 19" rack mounting. KDM10T For DIN panel mounting
