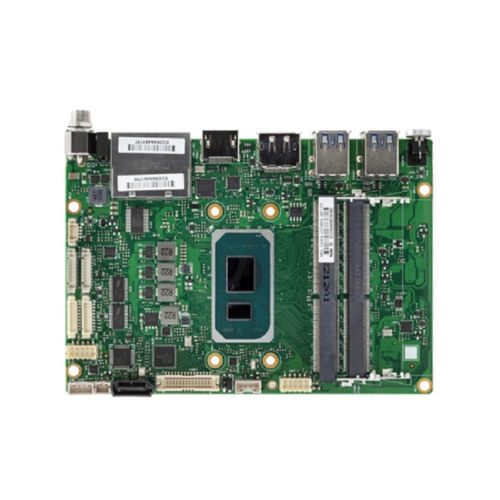

3.5" motherboard AIoT3-TGU series

11th Generation Intel® Core™Intel® Celeron® 6305E1th Gen Intel® Tiger Lake-UP3 i3-1115G4E

Intel® 11th Tiger Lake-U series CPU, low power consumption, small size, with high integration and stability, widely used in industrial control, embedded systems and iot devices and other fields. Display controller - Integrated Core Graphics: Intel UHD Graphics for 11th or Iris Xe Graphics (depending on CPU) Audio Support Mic-in+Line-out (single-hole 2-in-1); Support digital audio output with power amplifier (3W, 4Pin wafer) Network 2 x Intel Hi-Speed Ethernet: LAN1 i219V, LAN2 i226-V (4KV Surge Protection) I²C/I²S - 1 x 4Pin wafer I²C CAN 1 x 3Pin wafer CANBus 2.0 Digital I/O 8-bit digital I/O interface (1x10Pin wafer) TPM/TCM The on-board encryption chip SLB9670 supports TPM2.0 Operating temperature and humidity - When using room temperature memory and storage: -10°C~60°C, relative humidity 10%~85%, atmospheric pressure 85~105kPa When using wide temperature memory and storage: -40~70°C, relative humidity 10%~85%, atmospheric pressure 85~105kPa Non-operating temperature and humidity - Temperature: -40°C~85°C; The relative humidity is 5%~95% (40°C), and the atmospheric pressure is 85~105kPa Watch Dog - 255 levels of programmable seconds per minute with support for timeout interrupt or system reset BIOS AMI UEFI/Legacy BIOS Power DC 12V~24V DC-Jack (optional 2Pin Phoenix Terminal) Power switch, power indicator, storage indicator PCB dimensions (L*W) 146mm(W)×102mm(D)
