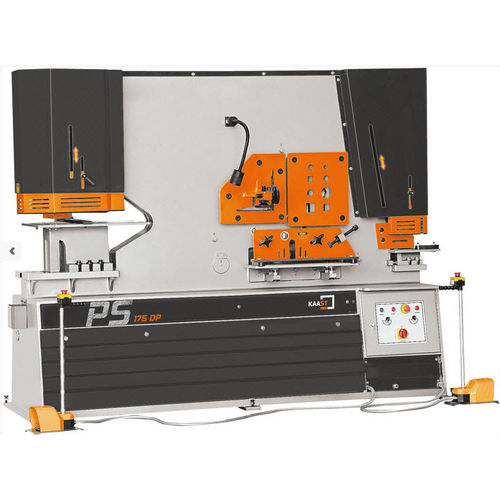

Automatic punching machine PS series

electricsheet metalpunching

All of our Hydraulic Ironworkers are built in Turkey.This multi-purpose machine, the hydraulic ironworker features 5 work stations for punching, shearing and notching. Our PS DP hydraulic Ironworker model features dual-cylinders, thus allowing parallel work on the punch as well as a second workstation at the same time. The included electric trigger switch measures up to 1000 mm (39.4”) for quick workflow of repetitive shearing work (65 ton and up). Each work station offers jog-mode for precise tool and work piece positioning. These ironworkers are also available with CNC-controlled material feed stock for punch, with 6 m (20’) or 4 m (12’) material table and a pneumatic holding device. Standard Configuration Punching Station Punching of sheet metal, flat and angle steel Sturdy table for high-quality cutting results Stepless stroke adjustment Adapter for punches and dies Flat shear Lower blade with 4 cutting edges Upper blade with 2 cutting edges Table with angle and length stop Angle shear Cutting angle profiles at different angles Adjustable rear stop Steelworker Cutting round and square steel 1000 mm (39.4”) back gauge (65 ton and up) Notching station Table with stops
