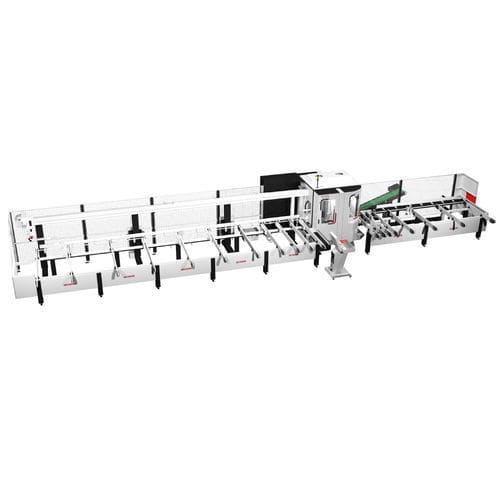

Aluminum profile cutting and machining center ZC 2010

- 14 axis machining center - Robust mechanical structure suitable for high speed - Axis speeds whose averages exceed 110 m/d - 8 pieces profile feeding capacity - Profile machining length 7,500 mm x 600 mm - Machinable profile section size 150 x 190 mm - Ø 550 mm saw - User-friendly Kaban interface with Windows-based, easily adjustable parametric structure - Mitsubishi PLC control system - Service support with remote connection - Automatic profile recognition system - Coolant spray system Design - Mechanical structure that can process aluminum profiles at high speed and high quality - Stress relieved cast and welded parts to ensure consistent high speed accuracy - Fully automatic processing of a wide variety of doors, windows and similar profiles, including industrial products - Suitable for grooving, drilling, marking, cutting at different angles, etc. ability to process - Coolant spray system Control Panel - Versatile adjustable, ergonomic kiosk - 19'' screen - User-friendly Kaban interface with Windows-based, easily adjustable parametric structure - High performance Mitsubishi PLC control system - Compatibility with 3rd party softwares - Data transfer via USB and COM Port Input Unit - 3 axis servo controlled profile driving robot - Profile holder with ?? Nm torque control and high measurement accuracy with its flexible structure - Conveyor system that can carry 8 profiles - Profile transport up to 7500 mm, at least 600 mm long - Automatic profile recognition system Cutting Unit - Vertically positioned saw rotatable between 30° and 150º - Adjustable saw feed speed - Ø 550 mm saw
