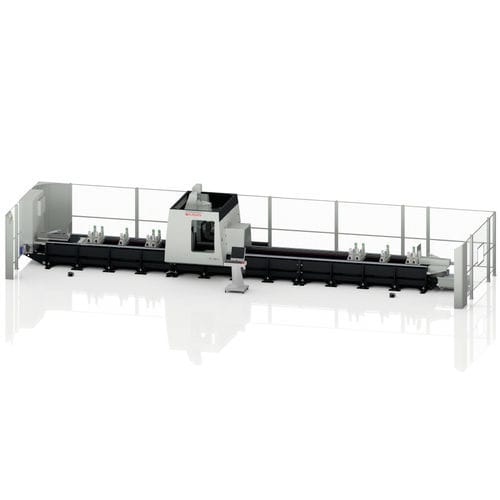

5-axis machining center ZC 3062

verticalfor steelfor aluminum

- Continuous Operation System (ZC 3063/ZC 3064) - Serial Profile Processing with Axis Speeds averaging 100 m/min - Protection Against Power Outages with UPS Design - Our machine, which has a robust mechanical design and can operate in two stations, processes aluminum and steel profiles for many years at high speed and quality. - With the profile fixed; performs all similar operations such as milling, notching, drilling, threading, countersinking and cutting. - With its axis speeds of 100 m/min on average, it processes much faster than equivalent products. Control Panel - Versatile adjustable, ergonomic kiosk - 19'' screen - Windows-based, user-friendly Kaban interface with easily adjustable parametric structure - Compatibility with .NCX extension software - High performance 4+1 axis Mitsubishi CNC control unit - Optical communication and command boost - Communication via Ethernet - Working with G-Code - Data transfer via USB and COM Port Spindle - HSK 63 brand spindle which has thermostat sensor with liquid cooling 12 kW max. 24,000 rpm. - Tool cooling system with oil-air mixture spraying, speed adjustment and liquid level sensor. Magazine - There are 16 sets of tools and an automatic rotating magazine that can be installed on a saw up to 200mm in diameter. - When moving from one process to another, time is saved thanks to the automatic tool change feature. Saw Magazine - There is a magazine that can be attached to a saw up to 500mm in diameter. Automatic Tool Length Measuring - Precise tool length measurement Profile Supports - Automatic profile support system on both sides - Suitable for working with long profiles
