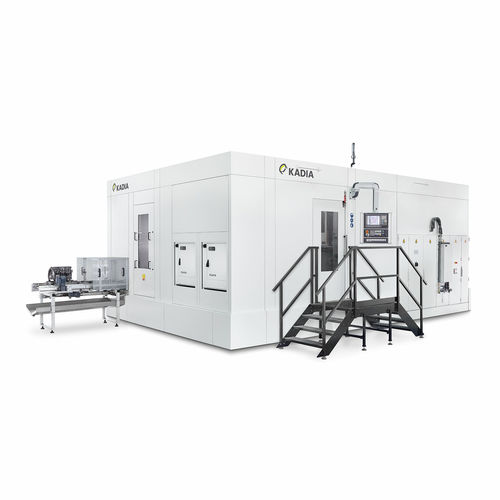

Milling deburring cell

machiningbrushNC

Flexible deburring machines for series production of complex components (automotive standard) – designed as workpiece-guided or tool-guided machine STRUCTURE - 1 or 2 six-axis robot and different NC axes CONTROLLER - Robot controller in combination with Siemens 840D GRIPPER SYSTEM - Single or double gripper on the robot with 7th axis Automatic change of tools and machining units MACHINING UNITS - Workpiece-guided systems: frequency-controlled drives, main spindle drives, multiple-spindle heads, planetary heads and much more Tool-guided systems: Spindle unit on the robot, other optional NC units TOOLS - Brushes, milling cutters, electroplated deburring tools, back deburrers, special versions, high pressure lances APPLICATIONS - Deburring of crankcases, cylinder heads, crankshafts, gearboxes, big gear components and much more WORKPIECE WEIGHT - Workpiece-guided systems: < 100 kg Tool-guided systems: no restrictions CYCLE TIMES - Variably scalable; usually: 30 sec to 180 sec COOLING LUBRICANT - Emulsion, oil, minimal lubrication, without cooling-lubricant
