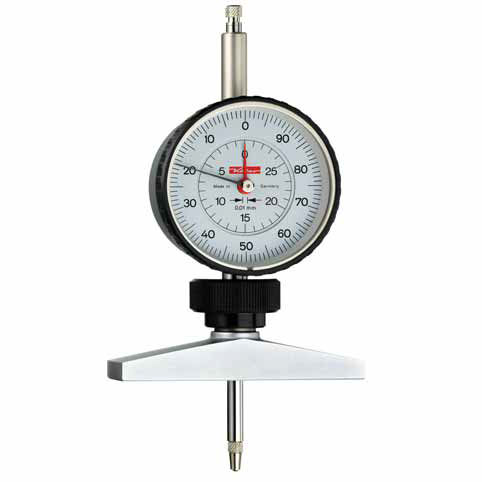

Dial depth gauge TM series

dial depth gauge
dial depth gauge
dial depth gauge
dial depth gauge
Add to favorites
Compare this product


Characteristics

Options
dial
Measuring range

5 mm, 10 mm, 30 mm
(0.1969 in, 0.3937 in, 1.1811 in)

Description

Dial Depth Gauges The base is dull chromed, hardened and lapped. The metal collet attachment guarantees reliable fixing of the dial gauge. An additional internal hexagon screw makes exchanging the dial gauge easier. Each of our mechanical dial depth gauges is equipped with the 10 mm long special contact point 573/21. Dial Depth Gauge TM 5 R with matt chromed measuring base The base is matt chromed, hardened and lapped. The metal collet attachment guarantees reliable fixing of the Dial Gauge. An additional internal hexagon screw makes exchanging the Dial Gauge easier. The back plunger Dial Gauge provides a very easy reading of this model of Dial Depth Gauge: The Gauge can be read from the top. Spare Dial Gauge for TM 5 R with contact point 537/21-L 13 The Spare Dial Depth Gauge for TM 5 R is supplied with contact point 573/21-L13, but without the base. The contact point 573/21-L13 with a length of 13 mm is also available as a spare part. The article number is 62360.
