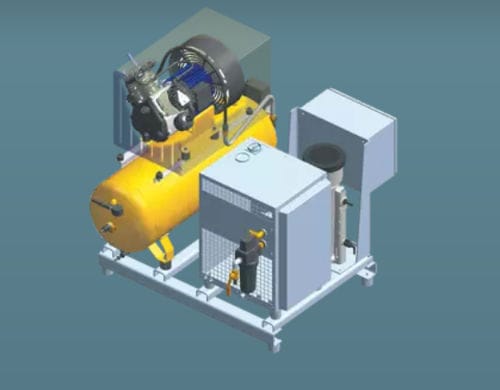

Piston compressor KCCD 130-100
airelectricfixed

Piston compressor - KCCD 130-100 - KAESER Kompressoren - air / electric / fixed
Piston compressor - KCCD 130-100 - KAESER Kompressoren - air / electric / fixed
Add to favorites
Compare this product

Characteristics

Technology
piston
Type
air
Power source
electric
Portability
fixed
Application domain
industrial, for agricultural applications, for scientific research
Applications
process, service, machine
Pressure

Max.: 35 bar
(507.63 psi)

Min.: 7 bar
(101.53 psi)

Flow

Max.: 1,400 l/min
(369.84 us gal/min)

Min.: 60 l/min
(15.85 us gal/min)

Power

Max.: 18.5 kW
(25.15 hp)

Min.: 0.75 kW
(1.02 hp)

Width

Max.: 1,820 mm
(71.65 in)

Min.: 640 mm
(25.2 in)

Height

Max.: 1,920 mm
(75.59 in)

Min.: 320 mm
(12.6 in)

Weight

Max.: 235 kg
(518.1 lb)

Min.: 120 kg
(264.6 lb)

Noise level

Max.: 83 dB

Min.: 62 dB

Description

Do you have special compressed air supply requirements? Kaeser will put together a complete, turnkey compressed air station for you – with custom compressed air quality, flow rate and pressure requirement specifications. Flow rate 60 to 1400 l/min Pressure from 7 to 35 bar Naturally we use only the highest quality, industrial-grade Kaeser components. In special circumstances, Kaeser can also construct a completely custom machine to meet your individual needs. Your advantages Optimally adapted to your overall system: We actively help with implementing the compressed air station into your overall system and with interface design – to ensure that everything works in perfect harmony. Low energy costs with optimal service life: Our analytic methods will determine the most effective manner of operation for your system in order to reduce your operating costs. Support for international use: We also offer internationally-specified versions of our products. This means that we take into account the corresponding national versions right from the planning stage. Furthermore we provide you with in-depth consultation services to prevent potential subsequent issues from occurring, such as lack of approvals. Cost-effective at all levels Throughout our manufacturing process, we focus on delivering products that provide exceptional reliability, long service life, low maintenance requirements and flexibility of use – which makes for highly cost-effective products and highly satisfied customers.
