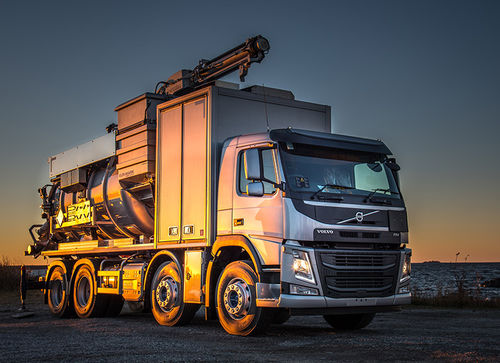

Vacuum-loader truck HERCULES

HERCULES Powerful and reliable The highly efficient dry vacuum vehicle is available as standard with a powerful SIAV-8702 Roots compressor with a suction power of up to 9000 m3/h. With a vacuum capacity of 90% and a pressure of up to 1 bar, the vehicle is equipped for all dry vacuuming and blowing operations. Exhaust filtration is effected through 72 filter bags with fully automatic cleaning of the filter elements. Power is transferred directly without the use of any belt drives, which means that the system is very reliable and requires minimum maintenance. Versatile and efficient The Hercules dry vacuum vehicle is designed for the heaviest and most demanding dry suction jobs, but it may also be effectively used for wet suction work. The flexible suction unit can be optimally adapted for each application, irrespective of whether suction works are conducted from below or a workspace higher up. The filter chamber is optimally designed and has a large hydraulic discharge door to make emptying easy and efficient. With the help of a specially designed blowing ejector, dry materials can be transferred very efficiently, also upwards. All work functions can be performed by radio remote control. For maximum blowing performance an optional screw compressor with an air flow rate of almost 7300 m3/h and a constant overpressure of 2 bar (3 bar absolute) is available. In this configuration the Hercules is really a top class performer. As an option the Hercules can also be equipped with a highpressure water pump for smaller jetting or cleaning jobs.
